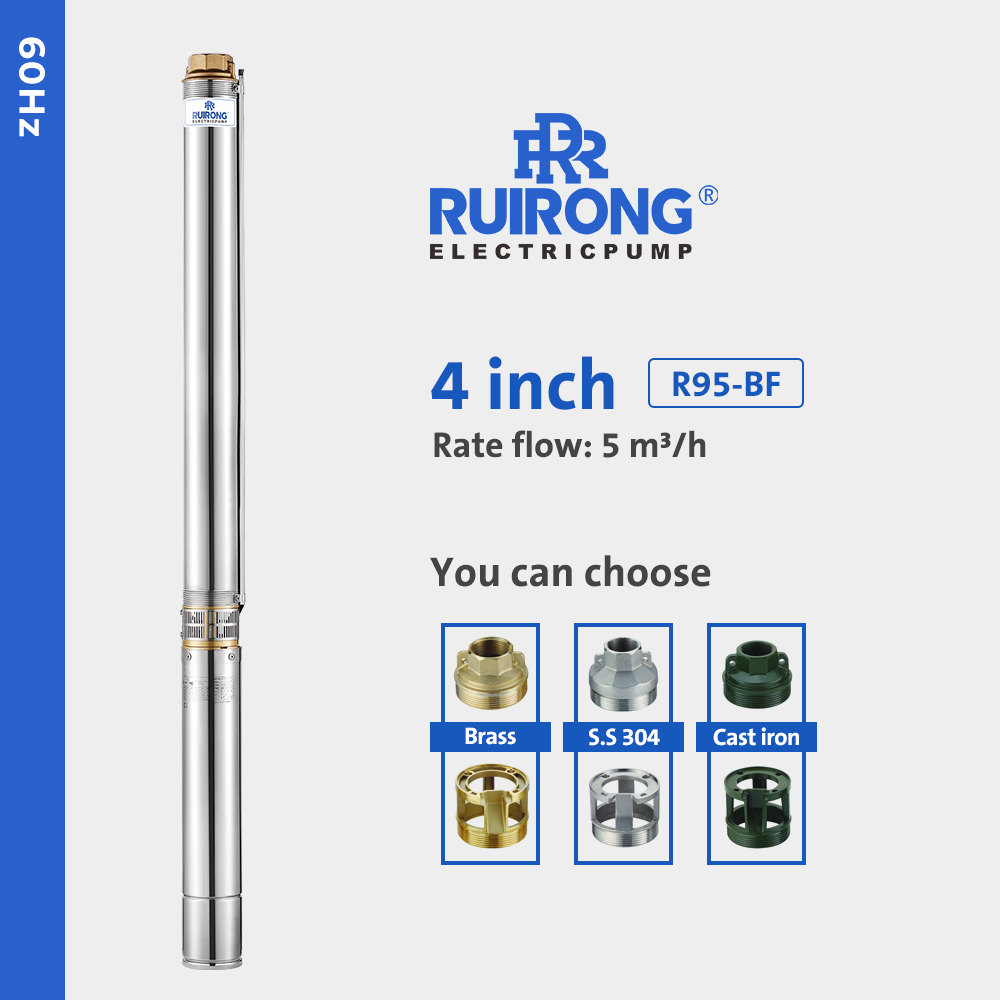

R95-BF
RUIRONG
1. Utilize a stainless steel 304 pump pipe for a sleek appearance and superior corrosion resistance.
2. Features a POM impeller and PPO diffuser that offer excellent high-temperature resistance, corrosion protection, enhanced mechanical strength, and an extended service life.
3. The innovative multi-stage floating impeller design minimizes starting torque requirements and efficiently prevents blockages from small sand particles, ensuring increased motor longevity.
4. Choose from various pump head materials, including copper alloy, stainless steel 304/316, and cast iron with anti-rust treatment.
Model 60Hz | Motor Power | Three Phase | Single Phase | Q | Capacity | ||||||||||
| US.gpm | 0 | 10.6 | 15.8 | 21.1 | 23.8 | 26.4 | 31.7 | 37 | |||||||
| m3/h | 0 | 2.4 | 3.6 | 4.8 | 5.4 | 6 | 7.2 | 8.4 | |||||||
| 380V | 220V | L/min | 0 | 40 | 60 | 80 | 90 | 100 | 120 | 140 | |||||
| HP | kW | A | A | μF | VC | Total head in meters | |||||||||
| R95-BF-03 | 0.5 | 0.37 | 2.2 | 5.5 | 20 | 450 | H (m) | 30 | 29.7 | 29.1 | 27.3 | 26 | 24 | 19.5 | 13 |
| R95-BF-04 | 0.75 | 0.55 | 2.6 | 6.5 | 25 | 450 | 40 | 39.6 | 38 | 36 | 34 | 32 | 26 | 17 | |
| R95-BF-05 | 1 | 0.75 | 3 | 7.9 | 30 | 450 | 50 | 49.5 | 48.5 | 45 | 43 | 40 | 32 | 21 | |
| R95-BF-06 | 1.5 | 1.1 | 3.9 | 10.1 | 40 | 450 | 60 | 59.4 | 58 | 54 | 52 | 49 | 39 | 26 | |
| R95-BF-08 | 2 | 1.5 | 5 | 12.6 | 50 | 450 | 80 | 79 | 77 | 73 | 69 | 65 | 52 | 34 | |
| R95-BF-11 | 3 | 2.2 | 5.4 | 13.6 | 60 | 450 | 110 | 109 | 107 | 100 | 95 | 89 | 71 | 47 | |
| R95-BF-12 | 3 | 2.2 | 6.6 | 16.8 | 60 | 450 | 120 | 119 | 116 | 109 | 103 | 97 | 78 | 51 | |
| R95-BF-15 | 4 | 3 | 8.6 | - | - | - | 150 | 148 | 145 | 136 | 129 | 121 | 97 | 65 | |
| R95-BF-18 | 5 | 3.7 | - | 22.5 | 80 | 450 | 180 | 178 | 175 | 164 | 155 | 146 | 117 | 77 | |
| R95-BF-20 | 5.5 | 4 | 8.6 | - | - | - | 200 | 198 | 194 | 182 | 172 | 162 | 130 | 86 | |
| R95-BF-21 | 5.5 | 4 | 11.2 | - | - | - | 210 | 208 | 204 | 191 | 180 | 170 | 136 | 90 | |
| R95-BF-26 | 7.5 | 5.5 | 11.9 | - | - | - | 260 | 257 | 252 | 236 | 224 | 211 | 169 | 112 | |
| R95-BF-28 | 7.5 | 5.5 | 15 | - | - | - | 280 | 277 | 271 | 255 | 241 | 227 | 180 | 120 | |
 | (Unit of Length: mm) | ||||||
| Model | H3 | H2 | H1 | ΦA | ΦB | Φmax | |
| R95-BF-03 | 713 | 367 | 346 | G1 1/2" | 95 | 100 | |
| R95-BF-04 | 750 | 367 | 383 | ||||
| R95-BF-05 | 806 | 387 | 419 | ||||
| R95-BF-06 | 864 | 407 | 457 | ||||
| R95-BF-08 | 972 | 442 | 530 | ||||
| R95-BF-11 | 1142 | 502 | 640 | ||||
| R95-BF-12 | 1179 | 502 | 677 | ||||
| R95-BF-15 | 1349 | 562 | 787 | ||||
| R95-BF-18 | 1499 | 602 | 897 | ||||
| R95-BF-20 | 1616 | 602 | 1014 | ||||
| R95-BF-21 | 1653 | 602 | 1052 | ||||
| R95-BF-26 | 1956 | 722 | 1234 | ||||
| R95-BF-28 | 2029 | 722 | 1307 | ||||
| Parts | Material | ||||||
| Delivery door | Cast iron | ||||||
| Suction support | Cast iron | ||||||
| Check value | Plastic(POM) | ||||||
| Valve support | Plastic(PPO/PC) | ||||||
| Shaft support | Plastic(PPO/PC) | ||||||
| Impeller | Plastic(PPO) | ||||||
| Diffuser | Plastic(POM) | ||||||
| Valve seal | Nitrile rubber(NBR) | ||||||
| Anti-wear washer | Nitrile rubber(NBR) | ||||||
| Pump bearing | Nitrile rubber(NBR) | ||||||
| Pump body | AISI 304 | ||||||
| Cable cover | AISI 304 | ||||||
| Filter | AISI 304 | ||||||
| Shaft | 2Cr13 | ||||||
| Shaft coupling | AISI 304 | ||||||
| Bushing | AISI 304 | ||||||
