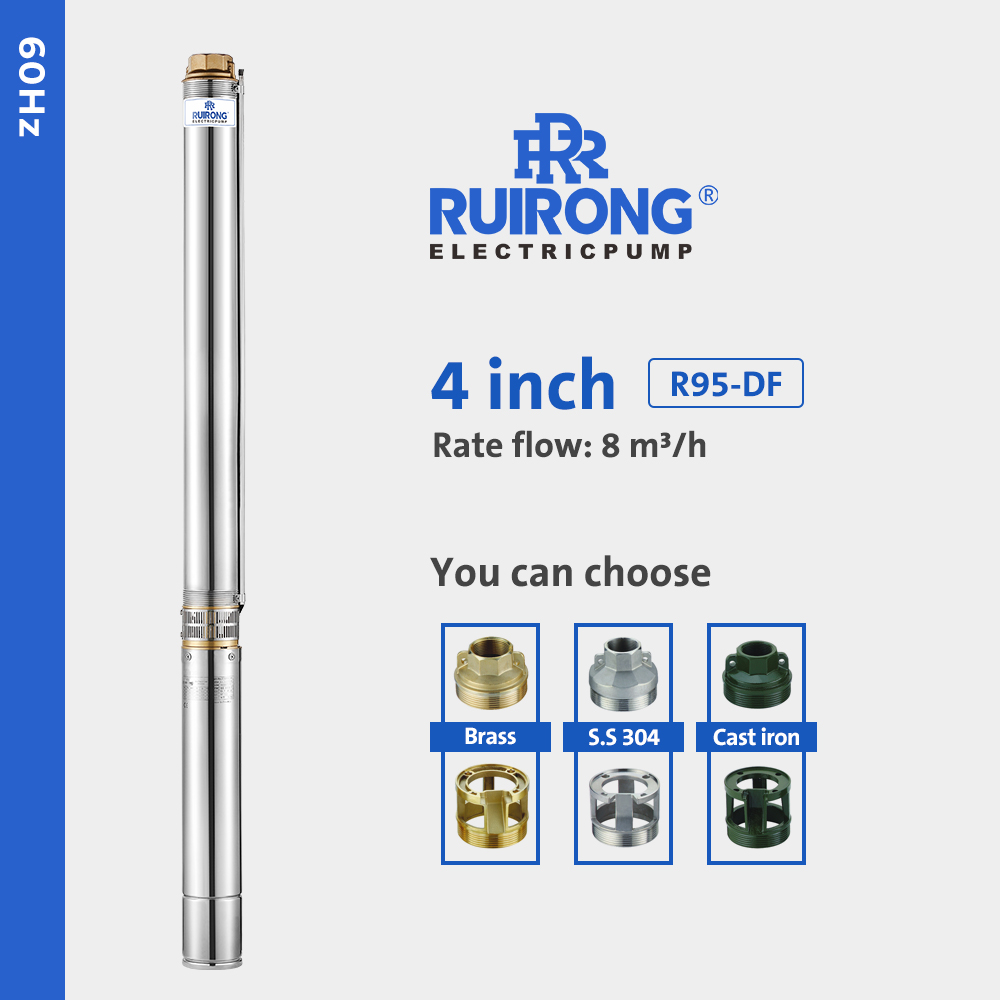

RUIRONG PUMP 60Hz 4 inch submersible pump brands submersible pump for well

Share to:

RUIRONG PUMP 60Hz 4 inch submersible pump brands submersible pump for well

Name: RUIRONG PUMP 60Hz 4 inch submersible pump brands submersible pump for well
Brand: RUIRONG
Rating: 5.0 (33 reviews)

Availability:

Quantity:



Inquire Add to Basket

Model:
R95-DF
Brand:
RUIRONG

Product Description

Features

1. Utilize a stainless steel 304 pump pipe for a sleek appearance and superior corrosion resistance.

2. Features a POM impeller and PPO diffuser that offer excellent high-temperature resistance, corrosion protection, enhanced mechanical strength, and an extended service life.

3. The innovative multi-stage floating impeller design minimizes starting torque requirements and efficiently prevents blockages from small sand particles, ensuring increased motor longevity.

4. Choose from various pump head materials, including copper alloy, stainless steel 304/316, and cast iron with anti-rust treatment.

Specifications

Model 60Hz	Motor Power		Three Phase	Single Phase			Q	Capacity
							US.gpm	0	15.8	26.4	31.7	37	42.2	47.5	52.8
							m³/h	0	3.6	6	7.2	8.4	9.6	10.8	12
			380V	220V			L/min	0	60	100	120	140	160	180	200
	HP	kW	A	A	μF	VC	Total head in meters
R95-DF-02	0.75	0.55	2.6	6.5	25	450	H (m)	22	21	19	17.5	15.5	14	12	9
R95-DF-03	1	0.75	3	7.9	30	450		33	31	29	26	23	21	17.5	14
R95-DF-04	1.5	1.1	3.9	10.1	40	450		43	40	37	34	31	28	24	19
R95-DF-05	2	1.5	5	12.6	50	450		53	49	44	41	37	34	29	23
R95-DF-06	3	2.2	5.4	13.6	60	450		65	61	55	51.5	46	42	36	29
R95-DF-07	3	2.2	6.6	16.8	60	450		75	69	63	59	53	48	41	33
R95-DF-08	4	3	6.7	-	-	-		88	80	73	68	62	56	47	38
R95-DF-09	4	3	8.6	-	-	-		95	88	80	75	67	61	52	41
R95-DF-11	5	3.7	-	22.5	80	450		121	111	101	94	85.5	77	66	52
R95-DF-12	5	3.7	-	27.4	80	450		131	122	110	103	93	84	72	57
R95-DF-13	5.5	4	11.2	-	-	-		137	128	116	108	97	88	75	60
R95-DF-15	7.5	5.5	11.9	-	-	-		164	151	137	128	115	105	90	71
R95-DF-17	7.5	5.5	11.9	-	-	-		180	167	151	141	127	115	98	78
R95-DF-22	10	7.5	15.8	-	-	-		240	222	202	189	170	154.5	131	104
R95-DF-24	10	7.5	19.9	-	-	-		250	230	211	199	183	163	143	110

Performance Curves

deep well submersible pump 2hp

Dimensions

(Unit of Length: mm)
Model	H3	H2	H1	ΦA	ΦB	Φmax
R95-DF-02	707	367	340	G2"	95	100
R95-DF-03	780	387	393
R95-DF-04	854	407	447
R95-DF-05	941	442	499
R95-DF-06	1054	502	552
R95-DF-07	1107	502	605
R95-DF-08	1218	562	656
R95-DF-09	1271	562	709
R95-DF-11	1415	602	813
R95-DF-12	1469	602	867
R95-DF-13	1521	602	919
R95-DF-15	1802	722	1080
R95-DF-17	1906	722	1184
R95-DF-22	2290	842	1448
R95-DF-24	2394	842	1552

Parts		Material
Delivery door		Cast iron
Suction support		Cast iron
Check value		Plastic(POM)
Valve support		Plastic(PPO/PC)
Shaft support		Plastic(PPO/PC)
Impeller		Plastic(PPO)
Diffuser		Plastic(POM)
Valve seal		Nitrile rubber(NBR)
Anti-wear washer		Nitrile rubber(NBR)
Pump bearing		Nitrile rubber(NBR)
Pump body		AISI 304
Cable cover		AISI 304
Filter		AISI 304
Shaft		2Cr13
Shaft coupling		AISI 304
Bushing		AISI 304
