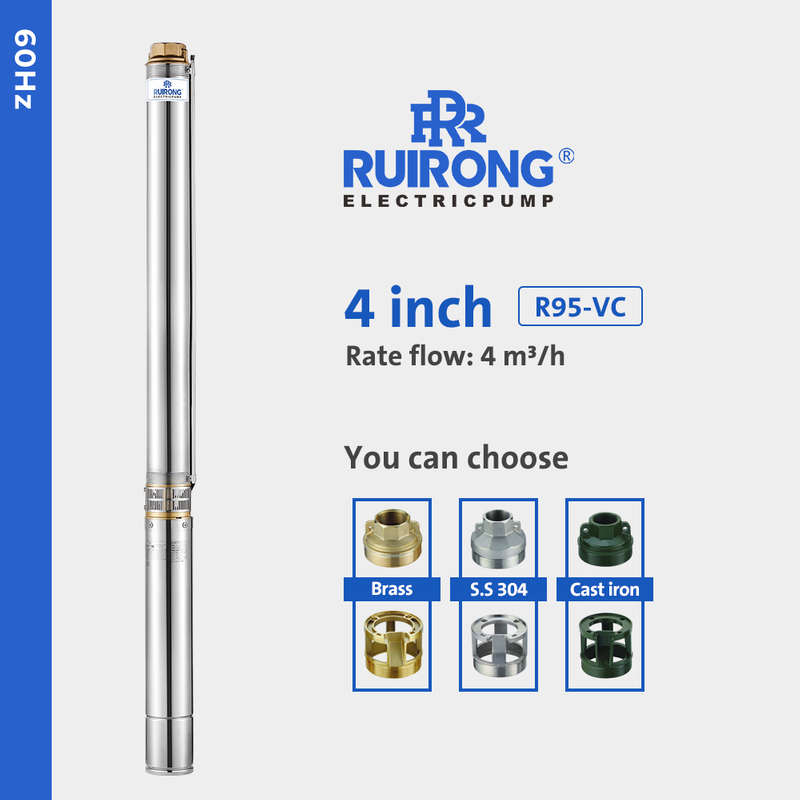

RUIRONG PUMP 60Hz 4 inch solar powered submersible pump deep well water pump

Share to:

RUIRONG PUMP 60Hz 4 inch solar powered submersible pump deep well water pump

Name: RUIRONG PUMP 60Hz 4 inch solar powered submersible pump deep well water pump
Brand: RUIRONG
Rating: 5.0 (90 reviews)

Availability:

Quantity:



Inquire Add to Basket

Model:
R95-VC
Brand:
RUIRONG

Product Description

Features

1. Utilize a stainless steel 304 pump pipe for a sleek appearance and superior corrosion resistance.

2. Features a POM impeller and PPO diffuser that offer excellent high-temperature resistance, corrosion protection, enhanced mechanical strength, and an extended service life.

3. The innovative multi-stage floating impeller design minimizes starting torque requirements and efficiently prevents blockages from small sand particles, ensuring increased motor longevity.

4. Choose from various pump head materials, including copper alloy, stainless steel 304/316, and cast iron with anti-rust treatment.

Specifications

Model 60Hz	Motor Power		Three Phase	Single Phase			Q	Capacity
							US.gpm	0	13.2	15.8	18.5	21.1	23.8	26.4	29
							m³/h	0	3	3.6	4.2	4.8	5.4	6	6.6
			380V	220V			L/min	0	50	60	70	80	90	100	110
	HP	kW	A	A	μF	VC	Total head in meters
R95-VC-03	0.5	0.37	2.2	5.5	20	450	H (m)	33	31	30	28	26	24	21	17.5
R95-VC-04	0.75	0.55	2.6	6.5	25	450		44	41	39	37	35	31	27	23
R95-VC-05	1	0.75	3	7.9	30	450		55	51.5	49	47	43	39	34	29
R95-VC-06	1.5	1.1	2.8	7.2	40	450		66	62	60	57	43	47	41	35
R95-VC-08	1.5	1.1	3.9	10.1	40	450		88	82	79	75	69	63	55	46
R95-VC-10	2	1.5	5	12.6	50	450		106	100	96	91	84	76	66	56
R95-VC-12	3	2.2	5.4	13.6	60	450		132	124	118	112	104	94	81	69
R95-VC-16	4	3	6.7	-	-	-		175	165	159	150	139	126	109	93
R95-VC-18	4	3	8.6	-	-	-		191	180	173	164	151	137	119	101
R95-VC-20	5	3.7	-	22.5	80	450		219	206	198	187	173	157	136	115
R95-VC-22	5	3.7	-	27.4	80	450		241	227	217	206	191	172	149	127
R95-VC-24	5.5	4	11.2	-	-	-		255	240	230	218	202	182	158	134
R95-VC-30	7.5	5.5	11.9	-	-	-		329	309	297	281	261	235	204	173
R95-VC-33	7.5	5.5	15	-	-	-		351	330	317	300	278	251	218	185

Performance Curves

submersible pump brands

Dimensions

(Unit of Length: mm)
Model	H3	H2	H1	ΦA	ΦB	Φmax
R95-VC-03	695	367	328	G1 1/2"	95	100
R95-VC-04	726	367	359
R95-VC-05	776	387	389
R95-VC-06	828	407	421
R95-VC-08	888	407	421
R95-VC-10	983	442	541
R95-VC-12	1103	502	601
R95-VC-16	1286	562	724
R95-VC-18	1346	562	784
R95-VC-20	1448	602	846
R95-VC-22	1555	602	846
R95-VC-24	1615	602	1013
R95-VC-30	1913	722	1191
R95-VC-33	2009	722	1287

Parts		Material
Delivery door		Cast iron
Suction support		Cast iron
Check value		Plastic(POM)
Valve support		Plastic(PPO/PC)
Shaft support		Plastic(PPO/PC)
Impeller		Plastic(PPO)
Diffuser		Plastic(POM)
Valve seal		Nitrile rubber(NBR)
Anti-wear washer		Nitrile rubber(NBR)
Pump bearing		Nitrile rubber(NBR)
Pump body		AISI 304
Cable cover		AISI 304
Filter		AISI 304
Shaft		2Cr13
Shaft coupling		AISI 304
Bushing		AISI 304
