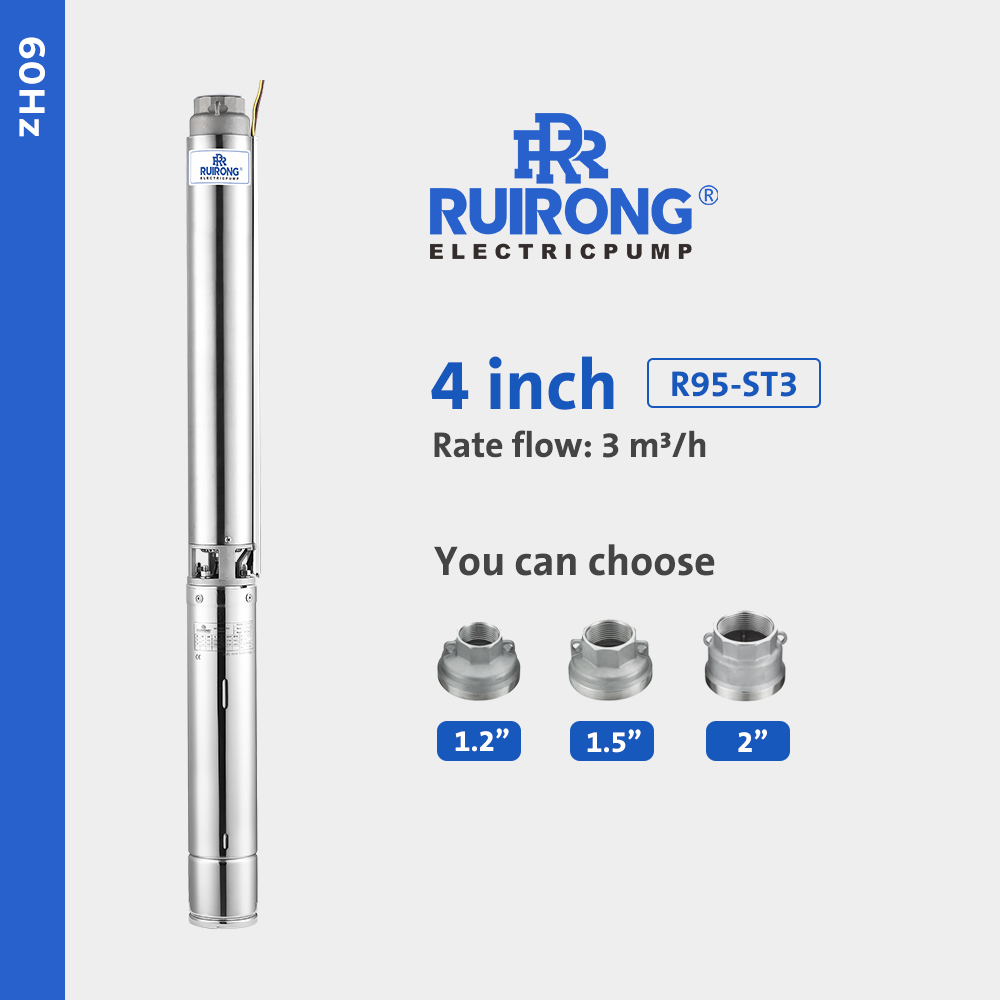

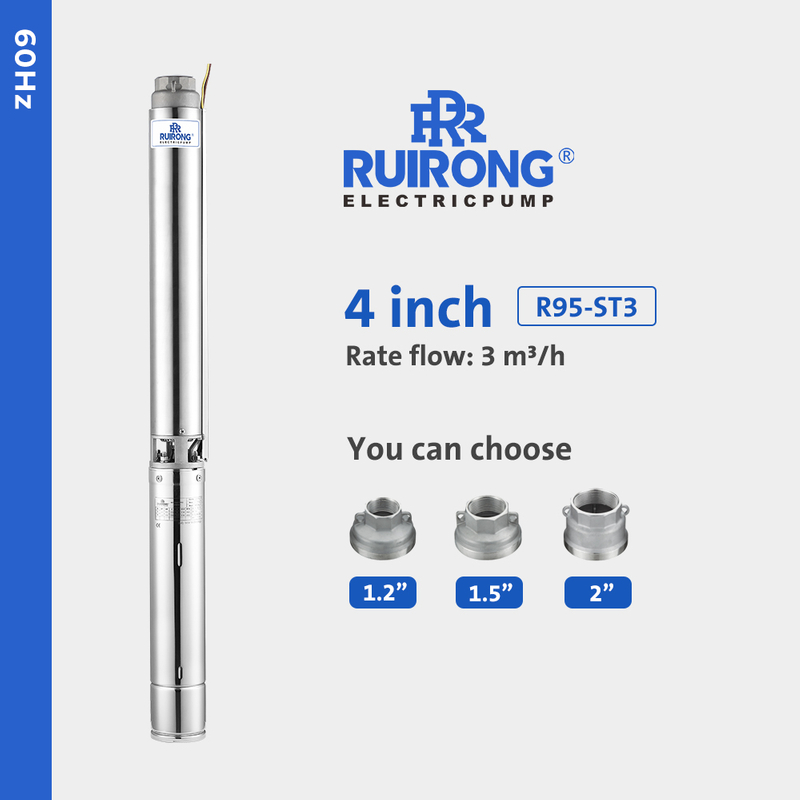

R95-ST3
RUIRONG
1. Utilize a robust stainless steel 304 pump tube with a thickness of 1.5mm, complemented by a stainless steel 304 diffuser and a durable stainless steel 304/316 pump head. This combination ensures high strength, aesthetic appeal, and long-lasting durability.
2. The innovative design of the multi-stage floating impeller significantly lowers the starting torque requirements and prevents blockages caused by small sand particles. This sand-resistant capability extends the motor's service life, offering enhanced performance and reliability.
Model 60Hz | Motor Power | 3~ | 1~ | Q | Capacity | ||||||||||
| US.gpm | 0 | 7.9 | 9.2 | 10.6 | 13.2 | 15.8 | 18.5 | 21.1 | |||||||
| m3/h | 0 | 1.8 | 2.1 | 2.4 | 3 | 3.6 | 4.2 | 4.8 | |||||||
| 380V | 220V | L/min | 0 | 30 | 35 | 40 | 50 | 60 | 70 | 80 | |||||
| HP | kW | A | A | μF | VC | Total head in meters | |||||||||
| *R95-ST3-03 | 0.5 | 0.37 | 1.2 | 3.4 | 20 | 450 | H (m) | 28 | 26 | 25 | 24 | 21 | 17 | 13 | 8 |
| R95-ST3-05 | 0.5 | 0.37 | 2.2 | 5.5 | 20 | 450 | 47 | 42 | 40 | 39 | 34 | 28 | 21 | 12 | |
| *R95-ST3-05 | 0.75 | 0.55 | 1.7 | 4.2 | 25 | 450 | |||||||||
| R95-ST3-07 | 0.75 | 0.55 | 2.6 | 6.5 | 25 | 450 | 67 | 61 | 59 | 57 | 50 | 41 | 31 | 19 | |
| *R95-ST3-07 | 1 | 0.75 | 2.1 | 5.4 | 30 | 450 | |||||||||
| R95-ST3-10 | 1 | 0.75 | 3 | 7.9 | 30 | 450 | 94 | 85 | 81 | 78 | 69 | 58 | 45 | 28 | |
| *R95-ST3-10 | 1.5 | 1.1 | 2.8 | 7.2 | 40 | 450 | |||||||||
| R95-ST3-12 | 1.5 | 1.1 | 3.9 | 10.1 | 40 | 450 | 116 | 109 | 106 | 102 | 91 | 78 | 60 | 38 | |
| *R95-ST3-13 | 2 | 1.5 | 3.7 | 9.6 | 50 | 450 | 126 | 118 | 114 | 110 | 98 | 84 | 64 | 41 | |
| R95-ST3-17 | 2 | 1.5 | 5 | 12.6 | 50 | 450 | 165 | 154 | 148 | 143 | 128 | 109 | 83 | 53 | |
| *R95-ST3-18 | 3 | 2.2 | 5.4 | 13.6 | 60 | 450 | 175 | 164 | 158 | 153 | 137 | 117 | 91 | 59 | |
| R95-ST3-21 | 3 | 2.2 | 6.6 | 16.8 | 60 | 450 | 204 | 193 | 187 | 180 | 162 | 139 | 110 | 72 | |
| *R95-ST3-25 | 4 | 3 | 6.7 | - | - | - | 242 | 228 | 221 | 213 | 191 | 163 | 129 | 86 | |
| R95-ST3-28 | 4 | 3 | 8.6 | - | - | - | 269 | 254 | 246 | 236 | 211 | 180 | 142 | 96 | |
| *R95-ST3-32 | 5 | 3.7 | - | 22.5 | 80 | 450 | 303 | 288 | 280 | 268 | 241 | 205 | 161 | 108 | |
| *R95-ST3-35 | 5 | 3.7 | - | 27.4 | 80 | 450 | 327 | 312 | 304 | 292 | 264 | 223 | 175 | 117 | |
| R95-ST3-35 | 5.5 | 4 | 8.6 | - | - | - | |||||||||
Mark * indicates that the pump body load is configured according to the rated power.
