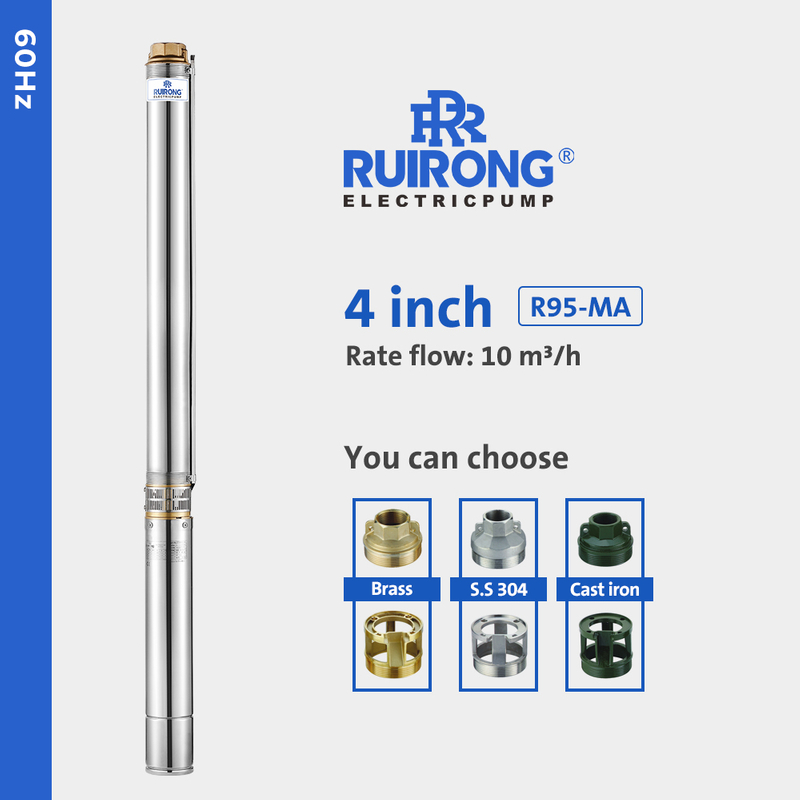

RUIRONG 60Hz 4 inch submersible well pump stainless steel submersible fountain pump

Share to:

RUIRONG 60Hz 4 inch submersible well pump stainless steel submersible fountain pump

Name: RUIRONG 60Hz 4 inch submersible well pump stainless steel submersible fountain pump
Brand: RUIRONG
Rating: 5.0 (87 reviews)

Availability:

Quantity:



Inquire Add to Basket

Model:
R95-MA
Brand:
RUIRONG

Product Description

Features

1. Utilize a stainless steel 304 pump pipe for a sleek appearance and superior corrosion resistance.

2. Features a POM impeller and PPO diffuser that offer excellent high-temperature resistance, corrosion protection, enhanced mechanical strength, and an extended service life.

3. The innovative multi-stage floating impeller design minimizes starting torque requirements and efficiently prevents blockages from small sand particles, ensuring increased motor longevity.

4. Choose from various pump head materials, including copper alloy, stainless steel 304/316, and cast iron with anti-rust treatment.

Specifications

Model 60Hz	Motor Power		Three Phase	Single Phase			Q	Capacity
							US.gpm	0	13.2	26.4	39.6	52.8	66	79.2	92.4
							m³/h	0	3	6	9	12	15	18	21
			380V	220V			L/min	0	50	100	150	200	250	300	350
	HP	kW	A	A	μF	VC	Total head in meters
R95-MA-02	0.75	0.55	2.6	6.5	25	450	H (m)	17	16	15	13	12	9	8	6
R95-MA-03	1	0.75	3	7.9	30	450		26	24	22	19	18	14	12	9
R95-MA-04	1.5	1.1	3.9	10.1	40	450		34	32	30	26	23	18	16	11
R95-MA-05	2	1.5	5	12.6	50	450		43	40	36	33	29	23	21	14
R95-MA-06	3	2.2	5.4	13.6	60	450		52	48	44	39	35	27	25	17
R95-MA-07	3	2.2	6.6	16.8	60	450		60	56	51	46	41	32	29	20
R95-MA-08	4	3	6.7	-	-	-		69	64	58	52	47	36	33	23
R95-MA-09	4	3	6.7	-	-	-		77	72	66	59	52	41	37	26
R95-MA-10	5	3.7	-	22.5	80	450		86	80	73	65	58	45	41	29
R95-MA-12	5	3.7	-	22.5	80	450		103	96	87	78	70	55	49	34
R95-MA-13	5.5	4	8.6	-	-	-		112	104	95	85	76	59	53	37
R95-MA-15	7.5	5.5	11.9	-	-	-		129	120	109	98	87	68	61	43
R95-MA-17	7.5	5.5	11.9	-	-	-		146	136	124	111	99	77	70	49
R95-MA-21	10	7.5	15.8	-	-	-		181	168	153	137	123	96	86	61
R95-MA-23	10	7.5	15.8	-	-	-		198	184	168	151	134	105	94	66

Performance Curves

submersible pump suppliers

Dimensions

(Unit of Length: mm)
Model	H3	H2	H1	ΦA	ΦB	Φmax
R95-MA-02	727	367	360	G2"	95	100
R95-MA-03	816	387	429
R95-MA-04	900	407	493
R95-MA-05	1008	442	566
R95-MA-06	1137	502	635
R95-MA-07	1208	502	706
R95-MA-08	1335	562	773
R95-MA-09	1403	562	841
R95-MA-10	1512	602	910
R95-MA-12	1649	602	1047
R95-MA-13	1715	602	1113
R95-MA-15	2018	722	1296
R95-MA-17	2156	722	1435
R95-MA-21	2593	842	1751
R95-MA-23	2732	842	1891

Parts		Material
Delivery door		Cast iron
Suction support		Cast iron
Check value		Plastic(POM)
Valve support		Plastic(PPO/PC)
Shaft support		Plastic(PPO/PC)
Impeller		Plastic(PPO)
Diffuser		Plastic(POM)
Valve seal		Nitrile rubber(NBR)
Anti-wear washer		Nitrile rubber(NBR)
Pump bearing		Nitrile rubber(NBR)
Pump body		AISI 304
Cable cover		AISI 304
Filter		AISI 304
Shaft		2Cr13
Shaft coupling		AISI 304
Bushing		AISI 304
