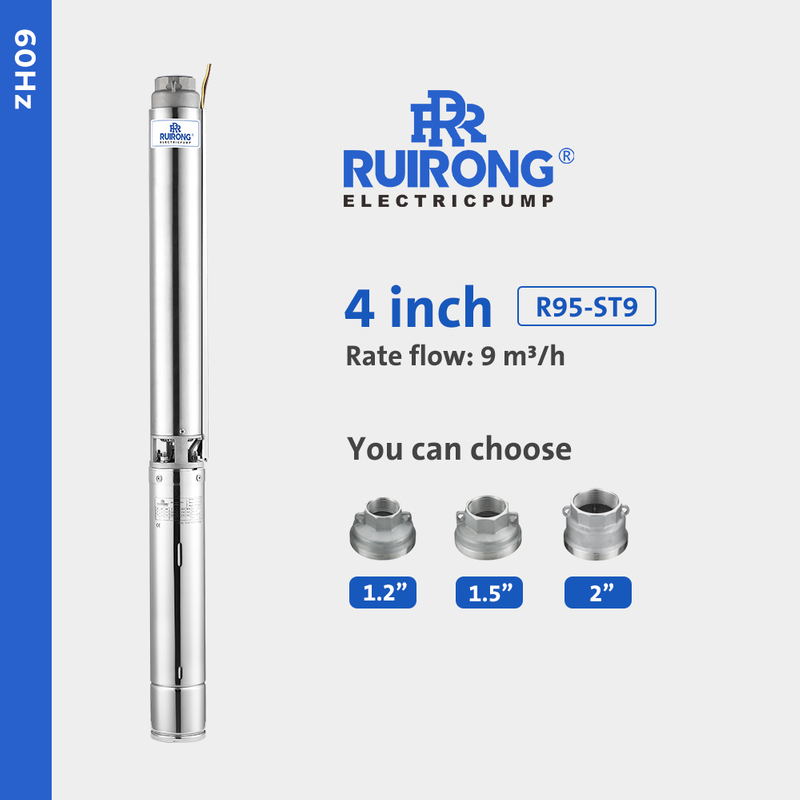

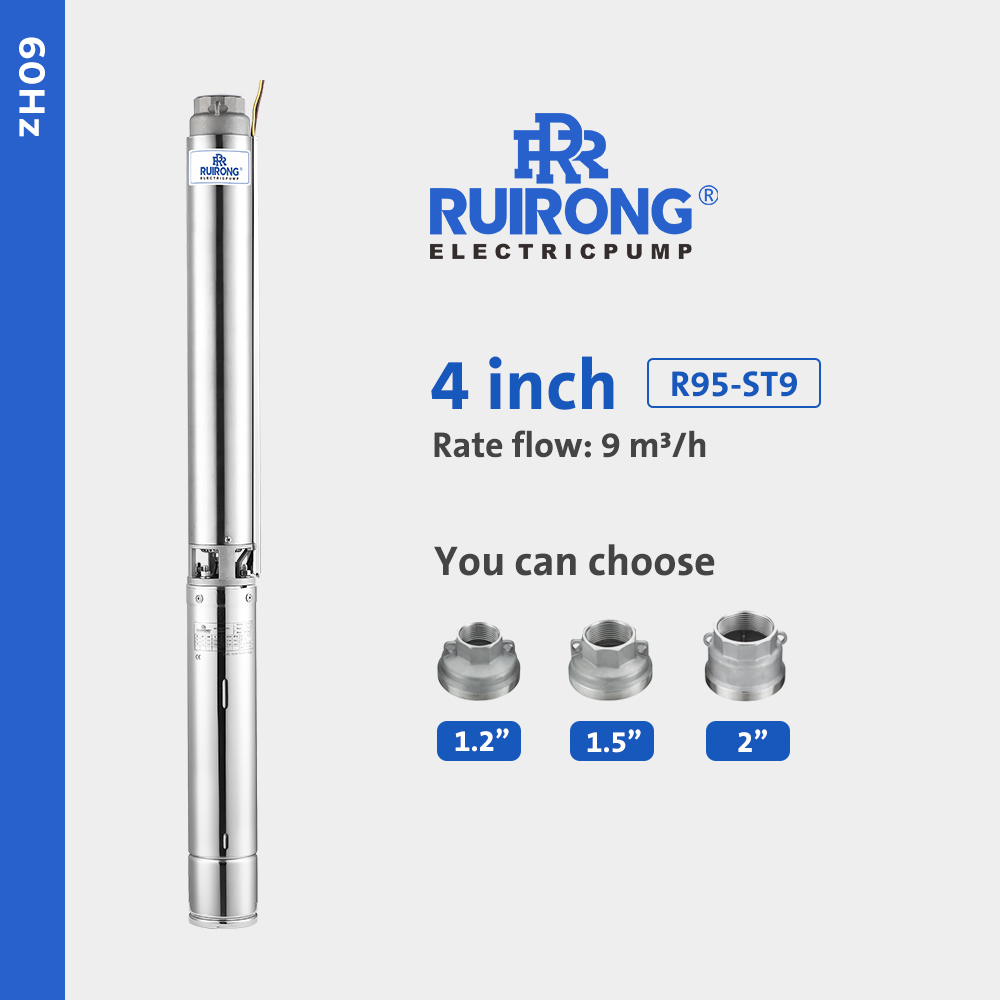

R95-ST9
RUIRONG
1. Utilize a robust stainless steel 304 pump tube with a thickness of 1.5mm, complemented by a stainless steel 304 diffuser and a durable stainless steel 304/316 pump head. This combination ensures high strength, aesthetic appeal, and long-lasting durability.
2. The innovative design of the multi-stage floating impeller significantly lowers the starting torque requirements and prevents blockages caused by small sand particles. This sand-resistant capability extends the motor's service life, offering enhanced performance and reliability.
Model 60Hz | Motor Power | 3~ | 1~ | Q | Capacity | ||||||||||
| US.gpm | 0 | 18.5 | 26.4 | 37 | 42.2 | 47.5 | 52.8 | 66 | |||||||
| m3/h | 0 | 4.2 | 6 | 8.4 | 9.6 | 10.8 | 12 | 15 | |||||||
| 380V | 220V | L/min | 0 | 70 | 100 | 140 | 160 | 180 | 200 | 250 | |||||
| HP | kW | A | A | μF | VC | Total head in meters | |||||||||
| *R95-ST9-04 | 1.5 | 1.1 | 2.8 | 7.2 | 40 | 450 | H (m) | 37 | 33 | 31 | 28 | 26 | 23 | 20 | 18 |
| R95-ST9-05 | 1.5 | 1.1 | 3.9 | 10.1 | 40 | 450 | 46 | 42 | 39 | 35 | 33 | 29 | 25 | 14 | |
| *R95-ST9-05 | 2 | 1.5 | 3.7 | 9.6 | 50 | 450 | |||||||||
| R95-ST9-06 | 2 | 1.5 | 5 | 12.6 | 50 | 450 | 55 | 49 | 47 | 42 | 38 | 35 | 30 | 17 | |
| *R95-ST9-07 | 3 | 2.2 | 5.4 | 13.6 | 60 | 450 | 64 | 59 | 56 | 51 | 47 | 42 | 36 | 20 | |
| R95-ST9-08 | 3 | 2.2 | 6.6 | 16.8 | 60 | 450 | 74 | 69 | 66 | 60 | 56 | 50 | 43 | 24 | |
| *R95-ST9-10 | 4 | 3 | 6.7 | - | - | - | 92 | 84 | 80 | 73 | 68 | 61 | 53 | 29 | |
| R95-ST9-11 | 4 | 3 | 8.6 | - | - | - | 100 | 91 | 86 | 78 | 73 | 66 | 58 | 30 | |
| *R95-ST9-12 | 5 | 3.7 | - | 22.5 | 80 | 450 | 110 | 100 | 95 | 87 | 81 | 75 | 66 | 37 | |
| R95-ST9-14 | 5 | 3.7 | - | 27.4 | 80 | 450 | 129 | 118 | 113 | 103 | 97 | 90 | 81 | 48 | |
| *R95-ST9-14 | 5.5 | 4 | 8.6 | - | - | - | |||||||||
| R95-ST9-15 | 5.5 | 4 | 11.2 | - | - | - | 139 | 128 | 123 | 113 | 105 | 97 | 88 | 55 | |
| *R95-ST9-18 | 7.5 | 5.5 | 11.9 | - | - | - | 167 | 153 | 146 | 134 | 125 | 116 | 104 | 62 | |
| R95-ST9-21 | 7.5 | 5.5 | 15 | - | - | - | 194 | 178 | 169 | 154 | 145 | 134 | 120 | 68 | |
| *R95-ST9-24 | 10 | 7.5 | 15.8 | - | - | - | 221 | 203 | 193 | 176 | 166 | 153 | 137 | 77 | |
| R95-ST9-28 | 10 | 7.5 | 19.9 | - | - | - | 258 | 237 | 225 | 205 | 193 | 178 | 160 | 90 | |
Mark * indicates that the pump body load is configured according to the rated power.
