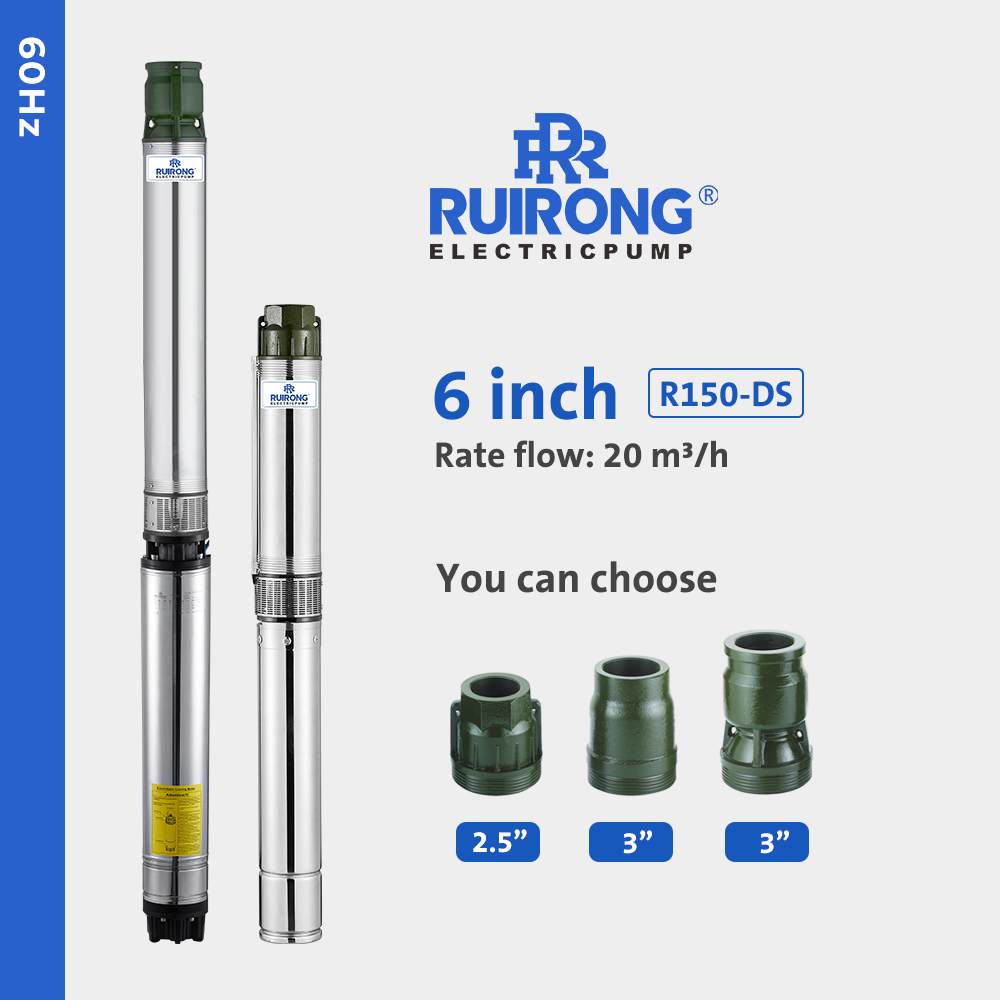

R150-DS
RUIRONG
1. Utilize a durable stainless steel 304 pump pipe paired with a PPO impeller and diffuser, offering both aesthetic appeal and excellent corrosion resistance.
2. A specially designed thrust bearing is installed to protect the pump from damage during start-up and transportation.
3. Choose from a variety of pump head materials, including copper alloy, stainless steel 304 or 316, and cast iron with anti-rust treatment.
Model 60Hz | Motor Power | Three Phase | Q | Capacity | ||||||||
| US.gpm | 0 | 52.8 | 66 | 79.2 | 96.8 | 105.6 | 118.8 | 132 | ||||
| m3/h | 0 | 12 | 15 | 18 | 22 | 24 | 27 | 30 | ||||
| 380V | L/min | 0 | 200 | 250 | 300 | 367 | 400 | 450 | 500 | |||
| HP | kW | A | Total head in meters | |||||||||
| *R150-DS-02 | 4 | 3 | 7.5 | H (m) | 43 | 40 | 38 | 36 | 33 | 29 | 25 | 20 |
| R150-DS-03 | 5.5 | 4 | 9.9 | 65 | 59 | 57 | 54 | 50 | 43 | 37 | 31 | |
| R150-DS-04 | 7.5 | 5.5 | 13 | 87 | 79 | 76 | 72 | 67 | 58 | 50 | 41 | |
| *R150-DS-05 | 10 | 7.5 | 15.2 | 109 | 99 | 96 | 90 | 84 | 72 | 62 | 51 | |
| *R150-DS-06 | 12.5 | 9.2 | 18.4 | 130 | 119 | 115 | 107 | 100 | 86 | 74 | 61 | |
| *R150-DS-07 | 15 | 11 | 21.6 | 152 | 139 | 134 | 125 | 117 | 101 | 87 | 71 | |
| *R150-DS-08 | 17.5 | 13 | 25.4 | 174 | 158 | 153 | 143 | 134 | 115 | 99 | 82 | |
| *R150-DS-09 | 17.5 | 13 | 25.4 | 195 | 178 | 172 | 161 | 150 | 130 | 112 | 92 | |
| *R150-DS-10 | 20 | 15 | 28.2 | 217 | 198 | 191 | 179 | 167 | 144 | 124 | 102 | |
| *R150-DS-11 | 25 | 18.5 | 34.5 | 239 | 218 | 210 | 197 | 184 | 158 | 136 | 112 | |
| R150-DS-13 | 25 | 18.5 | 39.7 | 282 | 257 | 248 | 233 | 217 | 187 | 161 | 133 | |
| *R150-DS-14 | 30 | 22 | 40.8 | 304 | 277 | 267 | 251 | 234 | 202 | 174 | 143 | |
| *R150-DS-16 | 35 | 26 | 51 | 347 | 317 | 305 | 286 | 267 | 230 | 198 | 163 | |
Mark * indicates that the pump body load is configured according to the rated power.
