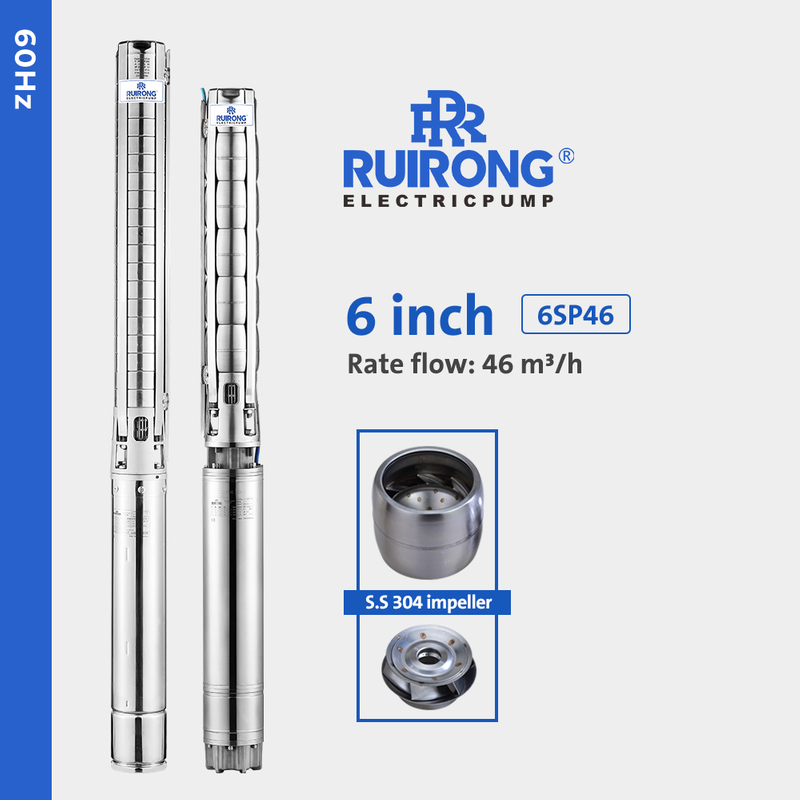

6SP46
RUIRONG
1. All components are made from 100% SS304 stainless steel, ensuring a corrosion-resistant, environmentally-friendly design that maintains water quality without secondary contamination.
2. The system includes a check valve to safeguard against backflow pressure when the electric pump halts. Optionally, drain holes can be added to the check valve seat, allowing slow drainage to prevent pipeline freezing during winter.
3. The stainless steel impeller offers superior wear resistance and a longer lifespan compared to ordinary plastic or brass impellers, enhancing pump efficiency and stability while ensuring extended durability.
4. A stainless steel sand net effectively prevents sand and large particles from entering the pump body.
5. A specially designed thrust bearing is installed to protect the pump from damage during startup and transportation.
Model 60Hz | Motor Power | Three Phase | Q | Capacity | ||||||||
| US.gpm | 0 | 105.7 | 132.1 | 158.5 | 184.9 | 211.3 | 237.8 | 264.2 | ||||
| m3/h | 0 | 24 | 30 | 36 | 42 | 48 | 54 | 60 | ||||
| 380V | L/min | 0 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | |||
| HP | kW | A | Total head in meters | |||||||||
| *6SP46-01 | 4 | 3 | 6.7 | H (m) | 20 | 19 | 18 | 17 | 16 | 15 | 14 | 12 |
| *6SP46-02 | 7.5 | 5.5 | 11.3 | 40 | 37 | 35 | 33 | 31 | 29 | 27 | 24 | |
| *6SP46-03 | 10 | 7.5 | 15.2 | 59 | 55 | 52 | 50 | 46 | 43 | 40 | 36 | |
| 6SP46-04 | 12.5 | 9.2 | 21.2 | 79 | 73 | 70 | 66 | 61 | 57 | 54 | 48 | |
| *6SP46-05 | 17.5 | 13 | 25.4 | 99 | 91 | 87 | 82 | 76 | 72 | 67 | 60 | |
| *6SP46-06 | 20 | 15 | 28.2 | 119 | 110 | 104 | 99 | 91 | 86 | 81 | 72 | |
| *6SP46-07 | 25 | 18.5 | 34.5 | 139 | 128 | 121 | 115 | 107 | 101 | 95 | 84 | |
| 6SP46-08 | 25 | 18.5 | 39.7 | 159 | 146 | 139 | 132 | 122 | 115 | 108 | 97 | |
| *6SP46-09 | 30 | 22 | 40.8 | 179 | 165 | 156 | 148 | 138 | 129 | 121 | 109 | |
| 6SP46-10 | 30 | 22 | 46.9 | 199 | 183 | 174 | 165 | 153 | 144 | 129 | 121 | |
| 6SP46-11 | 35 | 26 | 55.2 | 218 | 201 | 191 | 181 | 168 | 158 | 148 | 133 | |
| *6SP46-12 | 40 | 30 | 56.7 | 238 | 219 | 209 | 198 | 183 | 173 | 162 | 145 | |
| 6SP46-13 | 40 | 30 | 64.4 | 258 | 237 | 226 | 215 | 198 | 187 | 176 | 157 | |
| *6SP46-14 | 50 | 37 | 75 | 278 | 256 | 244 | 231 | 214 | 202 | 189 | 169 | |
| *6SP46-15 | 50 | 37 | 75 | 298 | 274 | 261 | 248 | 229 | 216 | 203 | 181 | |
| 6SP46-16 | 50 | 37 | 81.7 | 317 | 292 | 279 | 264 | 244 | 231 | 216 | 193 | |
| 6SP46-17 | 50 | 37 | 81.7 | 337 | 310 | 296 | 281 | 259 | 245 | 230 | 205 | |
| *6SP46-18 | 60 | 45 | 91.4 | 357 | 329 | 314 | 297 | 275 | 260 | 243 | 218 | |
| 6SP46-19 | 60 | 45 | 105 | 377 | 347 | 331 | 314 | 290 | 274 | 257 | 230 | |
| 6SP46-20 | 60 | 45 | 105 | 397 | 365 | 348 | 330 | 305 | 288 | 270 | 242 | |
| *6SP46-22 | 75 | 55 | 117 | 436 | 402 | 383 | 363 | 336 | 317 | 297 | 266 | |
| 6SP46-24 | 75 | 55 | 134 | 476 | 438 | 418 | 396 | 366 | 346 | 324 | 290 | |
Mark * indicates that the pump body load is configured according to the rated power.
