RUIRONG PUMP 60Hz 6 inch full stainless steel submersible deep well pump

Share to:

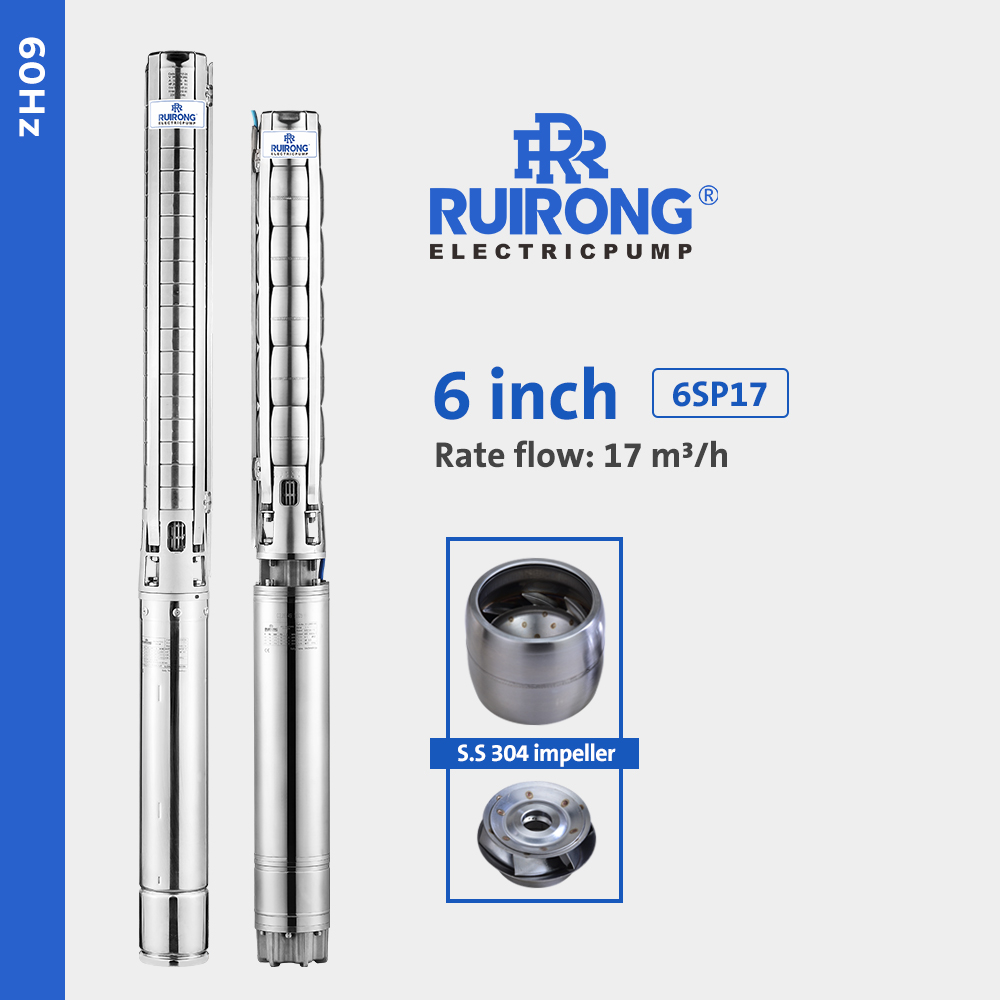

RUIRONG PUMP 60Hz 6 inch full stainless steel submersible deep well pump

Name: RUIRONG PUMP 60Hz 6 inch full stainless steel submersible deep well pump
Brand: RUIRONG
Rating: 5.0 (66 reviews)

Availability:

Quantity:



Inquire Add to Basket

Model:
6SP17
Brand:
RUIRONG

Product Description

Features

1. All components are made from 100% SS304 stainless steel, ensuring a corrosion-resistant, environmentally-friendly design that maintains water quality without secondary contamination.

2. The system includes a check valve to safeguard against backflow pressure when the electric pump halts. Optionally, drain holes can be added to the check valve seat, allowing slow drainage to prevent pipeline freezing during winter.

3. The stainless steel impeller offers superior wear resistance and a longer lifespan compared to ordinary plastic or brass impellers, enhancing pump efficiency and stability while ensuring extended durability.

4. A stainless steel sand net effectively prevents sand and large particles from entering the pump body.

5. A specially designed thrust bearing is installed to protect the pump from damage during startup and transportation.

Specifications

Model 60Hz	Motor Power		Three Phase	Q	Capacity
				US.gpm	0	40	57	66	75	84	92	106
				m³/h	0	9	13	15	17	19	21	24
			380V	L/min	0	150	217	250	283	317	350	400
	HP	kW	A	Total head in meters
*6SP17-01	1.5	1.1	2.8	H (m)	17	15	14	14	13	13	12	10
6SP17-02	3	2.2	5.4		34	30	29	28	27	25	24	21
6SP17-03	4	3	7.5		50	46	43	42	40	38	36	31
6SP17-04	5.5	4	9.2		67	61	58	56	53	51	47	42
*6SP17-05	7.5	5.5	11.3		84	76	72	70	67	63	59	52
6SP17-06	10	7.5	15.2		101	91	87	84	80	76	71	62
*6SP17-07	10	7.5	15.2		118	107	101	98	94	89	83	73
6SP17-08	12.5	9.2	18.4		135	122	115	112	107	101	95	83
*6SP17-09	12.5	9.2	18.4		151	137	130	125	120	114	107	94
6SP17-10	15	11	21.6		168	152	144	139	134	127	119	104
*6SP17-11	15	11	21.6		185	168	159	153	147	139	131	114
*6SP17-12	17.5	13	25.4		202	183	173	167	160	152	142	125
*6SP17-13	17.5	13	25.4		219	198	188	181	174	165	154	135
*6SP17-14	20	15	28.2		236	213	202	195	187	177	166	145
*6SP17-15	20	15	28.2		252	229	216	209	200	190	178	156
*6SP17-16	25	18.5	34.5		269	244	231	223	214	203	190	166
*6SP17-17	25	18.5	34.5		286	259	245	237	227	215	202	177
*6SP17-18	25	18.5	34.5		303	274	260	251	240	228	214	187
6SP17-19	25	18.5	39.7		320	289	274	265	254	241	226	197
*6SP17-20	30	22	40.8		337	305	289	279	267	254	237	208
*6SP17-21	30	22	40.8		353	320	303	293	281	266	249	218
*6SP17-22	30	22	40.8		370	335	317	307	294	279	261	229
*6SP17-23	35	26	51		387	350	332	321	307	292	273	239
*6SP17-24	35	26	51		404	366	346	335	321	304	285	249
*6SP17-25	35	26	51		421	381	361	348	334	317	297	260
*6SP17-26	35	26	51		437	396	375	362	347	330	309	270
6SP17-27	35	26	55.2		454	411	390	376	361	342	320	281
*6SP17-28	40	30	56.7		471	427	404	390	374	355	332	291
*6SP17-29	40	30	56.7		488	442	419	404	387	368	344	301
6SP17-30	40	30	64.4		505	457	433	418	401	380	356	312
*6SP17-33	50	37	75		555	503	476	460	441	418	392	343
*6SP17-36	50	37	75		606	548	520	502	481	456	427	374
