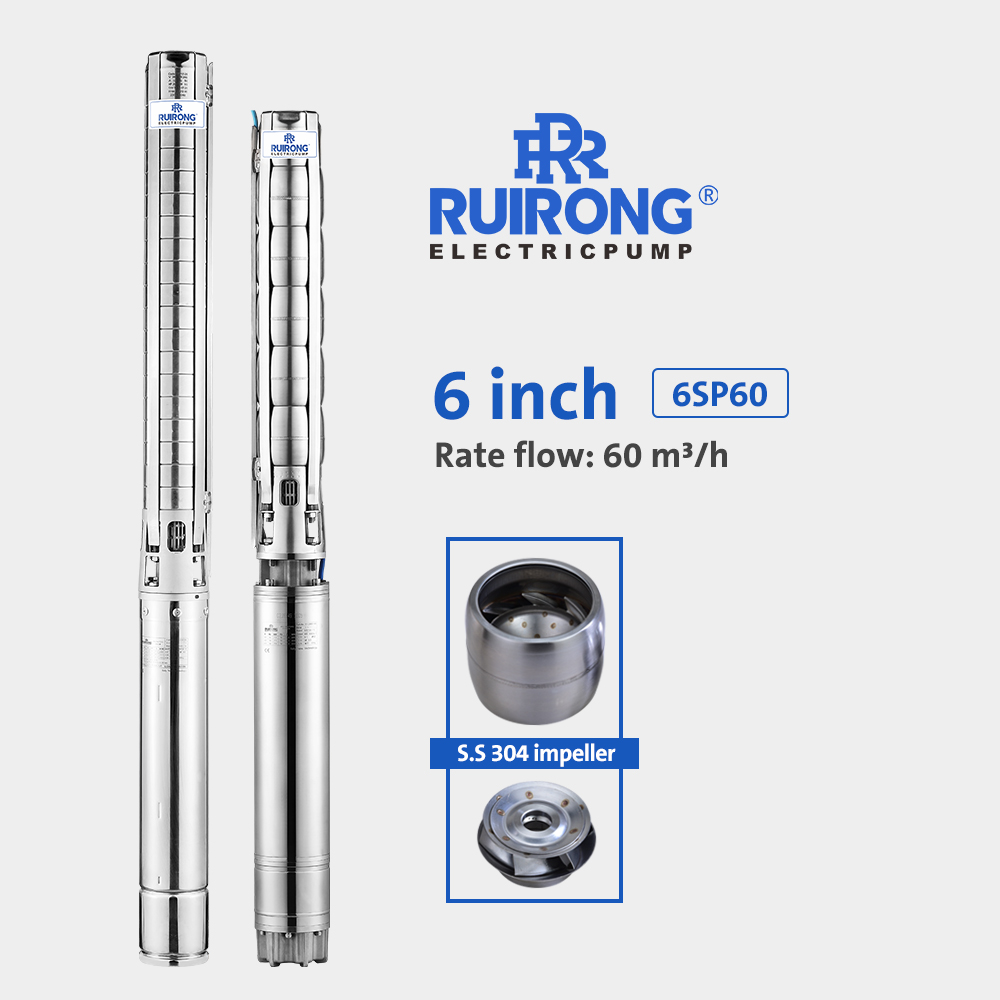

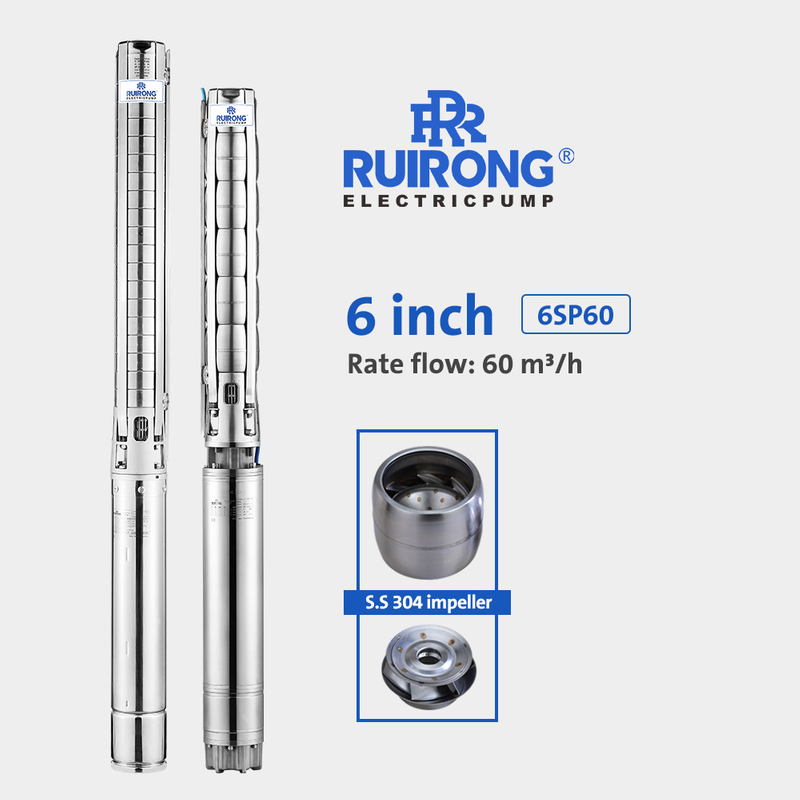

RUIRONG PUMP 6 inch stainless steel submersible pump all ss304 submersible borehole pump

Share to:

RUIRONG PUMP 6 inch stainless steel submersible pump all ss304 submersible borehole pump

Name: RUIRONG PUMP 6 inch stainless steel submersible pump all ss304 submersible borehole pump
Brand: RUIRONG
Rating: 5.0 (85 reviews)

Availability:

Quantity:



Inquire Add to Basket

Model:
6SP60
Brand:
RUIRONG

Product Description

Features

1. All components are made from 100% SS304 stainless steel, ensuring a corrosion-resistant, environmentally-friendly design that maintains water quality without secondary contamination.

2. The system includes a check valve to safeguard against backflow pressure when the electric pump halts. Optionally, drain holes can be added to the check valve seat, allowing slow drainage to prevent pipeline freezing during winter.

3. The stainless steel impeller offers superior wear resistance and a longer lifespan compared to ordinary plastic or brass impellers, enhancing pump efficiency and stability while ensuring extended durability.

4. A stainless steel sand net effectively prevents sand and large particles from entering the pump body.

5. A specially designed thrust bearing is installed to protect the pump from damage during startup and transportation.

Specifications

Model 50Hz	Motor Power		Three Phase	Q	Capacity
				US.gpm	0	106	158	185	211	238	264	290
				m³/h	0	24	36	42	48	54	60	66
			380V	L/min	0	400	600	700	800	900	1000	1100
	HP	kW	A	Total head in meters
6SP60-01	4	3	8.3	H (m)	14	13	12	11	10	9	7	6
6SP60-02	5.5	4	10.3		27	25	23	21	19	17	15	13
6SP60-03	7.5	5.5	13		41	38	34	32	29	26	23	19
6SP60-04	10	7.5	17		55	50	45	42	39	35	30	25
6SP60-05	12.5	9.2	21		68	63	57	53	48	43	38	31
6SP60-06	15	11	24		82	75	68	63	58	52	45	38
6SP60-07	17.5	13	28		95	88	79	74	68	61	53	44
6SP60-08	20	15	32		113	101	91	84	77	69	60	50
6SP60-09	25	18.5	40		127	113	102	95	87	78	68	56
6SP60-10	25	18.5	40		142	126	113	106	97	87	75	63
6SP60-11	30	22	46		156	138	125	116	106	95	83	69
6SP60-12	30	22	46		170	151	136	127	116	104	90	75
6SP60-13	35	26	54		184	164	147	137	126	113	98	81
6SP60-14	35	26	54		198	176	159	148	135	121	105	88
6SP60-15	35	26	54		212	189	170	158	145	130	113	94
6SP60-16	40	30	62		227	201	181	169	155	139	121	100
6SP60-17	50	37	74		241	214	193	180	164	147	128	106
6SP60-18	50	37	74		255	226	204	190	174	156	136	113
6SP60-19	50	37	74		269	239	215	201	184	165	143	119
6SP60-20	50	37	74		283	252	227	211	194	173	151	125
6SP60-21	50	37	74		297	264	238	222	203	182	158	131
6SP60-22	60	45	91.4		311	277	249	232	213	191	166	138
6SP60-24	60	45	91.4		340	302	272	253	232	208	181	150
6SP60-26	75	55	117		368	327	295	275	252	225	196	163
6SP60-28	75	55	117		396	352	317	296	271	243	211	175
6SP60-30	75	55	117		425	377	340	317	290	260	226	188

Performance Curves

submersible water pump

submersible pump brands

Dimensions

(Unit of Length: mm)
Model	H3	H2	H1	ΦA	ΦB	Φmax
6SP60-01	1053	667	386	G3"/G4"	144	145
6SP60-02	1201	702	499
6SP60-03	1354	742	612
6SP60-04	1502	777	725
6SP60-05	1645	807	838
6SP60-06	1783	832	951
6SP60-07	1926	862	1064
6SP60-08	2094	917	1177
6SP60-09	2257	967	1290
6SP60-10	2370	967	1403
6SP60-11	2533	1017	1516
6SP60-12	2646	1017	1629
6SP60-13	2804	1062	1742
6SP60-14	2917	1062	1855
6SP60-15	3030	1062	1968
6SP60-16	3198	1117	2081
6SP60-17	3401	1207	2194
6SP60-18	3514	1207	2307
6SP60-19	3627	1207	2420
6SP60-20	3740	1207	2533
6SP60-21	3853	1207	2646
6SP60-22	3864	1105	2759
6SP60-24	3977	1105	2872
6SP60-26	4398	1413	2985
6SP60-28	4511	1413	3098
6SP60-30	4624	1413	3211

Parts		Material
Shaft		AISI 304(316L)
Coupling		AISI 304(316L)
Check value		AISI 304(316L)
Pump body		AISI 304(316L)
Impeller		AISI 304(316L)
Diffuser		AISI 304(316L)
Bearing		Wear resistant rubber
Suction strainer		AISI 304(316L)
Suction support		AISI 304(316L)
Delivery body		AISI 304(316L)
