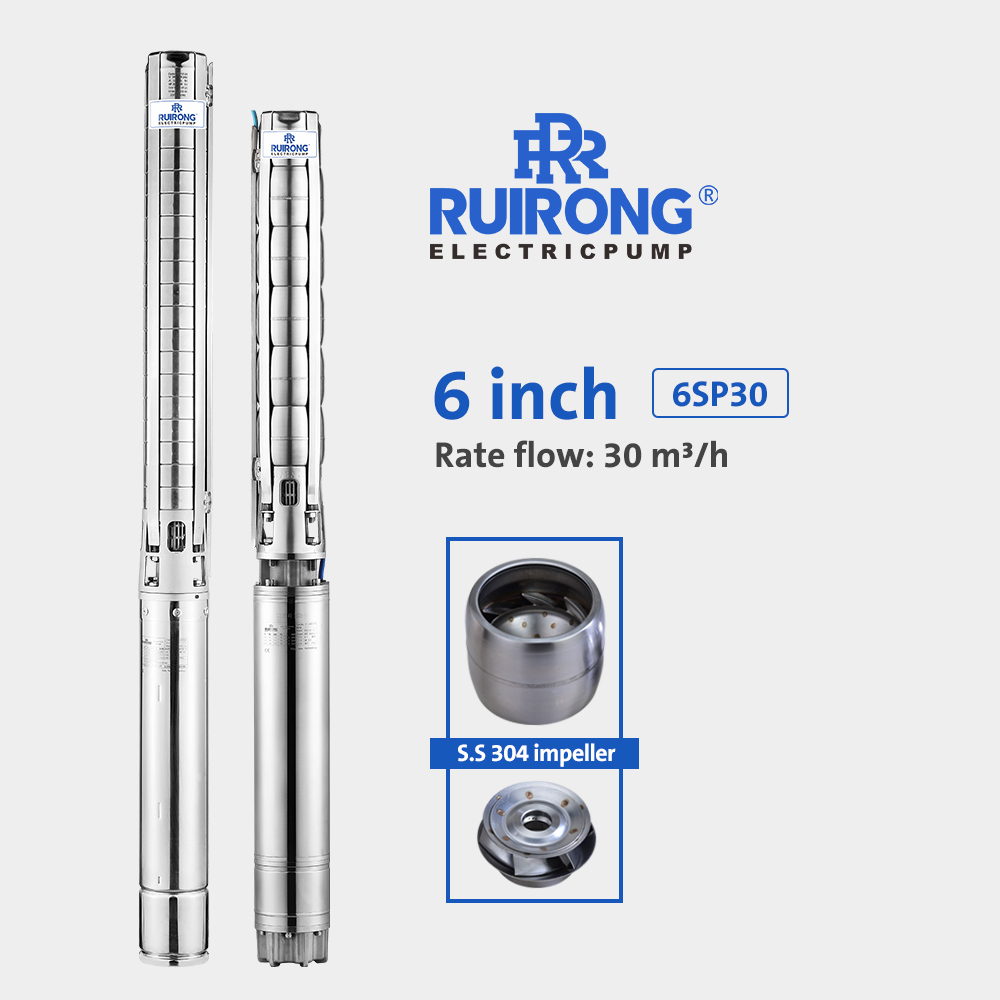

RUIRONG PUMP 6 inch 380v SS304 submersible pump full stainless steel submersible borehole pump

Share to:

RUIRONG PUMP 6 inch 380v SS304 submersible pump full stainless steel submersible borehole pump

Name: RUIRONG PUMP 6 inch 380v SS304 submersible pump full stainless steel submersible borehole pump
Brand: RUIRONG
Rating: 5.0 (75 reviews)

Availability:

Quantity:



Inquire Add to Basket

Model:
6SP30
Brand:
RUIRONG

Product Description

Features

1. All components are made from 100% SS304 stainless steel, ensuring a corrosion-resistant, environmentally-friendly design that maintains water quality without secondary contamination.

2. The system includes a check valve to safeguard against backflow pressure when the electric pump halts. Optionally, drain holes can be added to the check valve seat, allowing slow drainage to prevent pipeline freezing during winter.

3. The stainless steel impeller offers superior wear resistance and a longer lifespan compared to ordinary plastic or brass impellers, enhancing pump efficiency and stability while ensuring extended durability.

4. A stainless steel sand net effectively prevents sand and large particles from entering the pump body.

5. A specially designed thrust bearing is installed to protect the pump from damage during startup and transportation.

Specifications

Model 50Hz	Motor Power		Three Phase	Q	Capacity
				US.gpm	0	70	79	106	123	132	141	158
				m³/h	0	9	18	24	28	30	32	36
			380V	L/min	0	150	300	400	467	500	533	600
	HP	kW	A	Total head in meters
6SP30-01	1.5	1.1	3.5	H (m)	12	11	10	9	8	8	7	6
6SP30-02	3	2.2	6.2		23	22	20	18	17	16	15	12
6SP30-03	4	3	8.3		35	34	31	28	25	24	22	19
6SP30-04	5.5	4	10.3		46	45	41	37	33	31	29	25
6SP30-05	7.5	5.5	13		58	56	51	46	42	39	37	31
6SP30-06	7.5	5.5	13		69	67	61	55	50	47	44	37
6SP30-07	10	7.5	17		81	78	71	64	58	55	51	43
6SP30-08	10	7.5	17		92	89	82	73	67	63	59	49
6SP30-09	12.5	9.2	21		104	101	92	83	75	71	66	56
6SP30-10	12.5	9.2	21		116	112	102	92	83	78	73	62
6SP30-11	12.5	9.2	21		127	123	112	101	92	86	81	68
6SP30-12	15	11	24		139	134	122	110	100	94	88	74
6SP30-13	15	11	24		150	145	133	119	108	102	95	80
6SP30-14	17.5	13	28		162	157	143	128	117	110	103	87
6SP30-15	17.5	13	28		173	168	153	138	125	118	110	93
6SP30-16	20	15	32		185	179	163	147	133	125	117	99
6SP30-17	20	15	32		196	190	173	156	141	133	125	105
6SP30-18	25	18.5	40		208	201	184	165	150	141	132	111
6SP30-19	25	18.5	40		220	212	194	174	158	149	139	118
6SP30-20	25	18.5	40		231	224	204	183	166	157	147	124
6SP30-21	25	18.5	40		243	235	214	193	175	165	154	130
6SP30-22	30	22	46		254	246	224	202	183	173	161	136
6SP30-23	30	22	46		266	257	235	211	191	180	169	142
6SP30-24	30	22	46		277	268	245	220	200	188	176	148
6SP30-25	30	22	46		289	279	255	229	208	196	183	155
6SP30-26	30	22	46		300	291	265	239	216	204	190	161
6SP30-27	35	26	54		312	302	275	248	225	212	198	167
6SP30-28	35	26	54		324	313	285	257	233	220	205	173
6SP30-29	35	26	54		335	324	296	266	241	227	212	179
6SP30-30	35	26	54		347	335	306	275	250	235	220	186
6SP30-31	35	26	54		358	347	316	284	258	243	227	192
6SP30-32	40	30	64		370	358	326	294	266	251	234	198
6SP30-33	40	30	64		381	369	336	303	275	259	242	204
6SP30-34	40	30	64		393	380	347	312	283	267	249	210
6SP30-35	40	30	64		404	391	357	321	291	274	256	216
6SP30-39	50	37	74		451	436	398	35	325	306	286	241

Performance Curves

30hp submersible pump

380v SS304 submersible pump

Dimensions

(Unit of Length: mm)
Model	H3	H2	H1	ΦA	ΦB	Φmax
6SP30-01	723	387	336	G3"/G4"	95	145
6SP30-02	903	454	449		95
6SP30-03	1228	667	561		144
6SP30-04	1359	702	657
6SP30-05	1495	742	753
6SP30-06	1591	742	849
6SP30-07	1722	777	945
6SP30-08	1818	777	1041
6SP30-09	1944	807	1137
6SP30-10	2040	807	1233
6SP30-11	2136	807	1329
6SP30-12	2257	832	1425
6SP30-13	2353	832	1521
6SP30-14	2479	862	1617
6SP30-15	2575	862	1713
6SP30-16	2726	917	1809
6SP30-17	2822	917	1905
6SP30-18	2968	967	2001
6SP30-19	3064	967	2097
6SP30-20	3160	967	2193
6SP30-21	3256	967	2289
6SP30-22	3402	1017	2385
6SP30-23	3498	1017	2481
6SP30-24	3594	1017	2577
6SP30-25	3690	1017	2673
6SP30-26	3786	1017	2769
6SP30-27	3927	1062	2865
6SP30-28	4023	1062	2961
6SP30-29	4119	1062	3057
6SP30-30	4215	1062	3153
6SP30-31	4311	1062	3249
6SP30-32	4462	1117	3345
6SP30-33	4558	1117	3441
6SP30-34	4654	1117	3537
6SP30-35	4750	1117	3633
6SP30-39	4936	1207	3729

Parts		Material
Shaft		AISI 304(316L)
Coupling		AISI 304(316L)
Check value		AISI 304(316L)
Pump body		AISI 304(316L)
Impeller		AISI 304(316L)
Diffuser		AISI 304(316L)
Bearing		Wear resistant rubber
Suction strainer		AISI 304(316L)
Suction support		AISI 304(316L)
Delivery body		AISI 304(316L)
