RUIRONG PUMP 6 inch Submersible Agricultural Pump deep well Pump manufacturer

Share to:

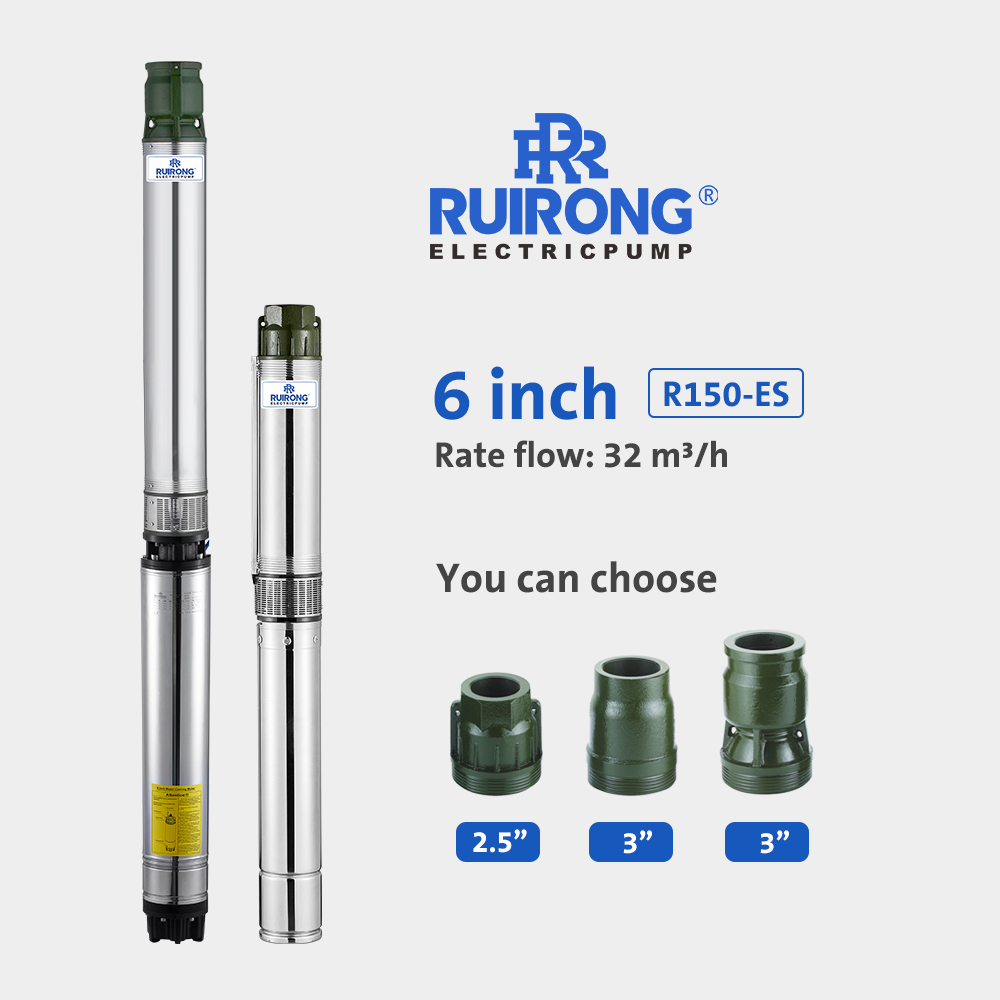

RUIRONG PUMP 6 inch Submersible Agricultural Pump deep well Pump manufacturer

Name: RUIRONG PUMP 6 inch Submersible Agricultural Pump deep well Pump manufacturer
Brand: RUIRONG
Rating: 5.0 (97 reviews)

Availability:

Quantity:



Inquire Add to Basket

Model:
R150-ES
Brand:
RUIRONG

Product Description

Features

1. Utilize a durable stainless steel 304 pump pipe paired with a PPO impeller and diffuser, offering both aesthetic appeal and excellent corrosion resistance.

2. A specially designed thrust bearing is installed to protect the pump from damage during start-up and transportation.

3. Choose from a variety of pump head materials, including copper alloy, stainless steel 304 or 316, and cast iron with anti-rust treatment.

Specifications

Model 50Hz	Motor Power		Three Phase	Q	Capacity
				US.gpm	0	44	66	88	114	141	154	167
				m³/h	0	10	15	20	26	32	35	38
			380V	L/min	0	167	250	333	433	533	583	633
	HP	kW	A	Total head in meters
R150-ES-02	4	3	8.3	H (m)	30	28	27	26	24	20	18	16
R150-ES-03	5.5	4	10.3		44	42	41	40	36	31	27	21
R150-ES-04	7.5	5.5	14		59	56	55	53	48	42	39	33
R150-ES-05	10	7.5	18.5		72	71	69	65	59	51	45	40
R150-ES-06	10	7.5	18.5		88	86	84	78	71	60	54	48
R150-ES-07	12.5	9.2	21		102	99	97	92	84	71	64	53
R150-ES-08	15	11	24		116	115	112	105	95	84	71	63
R150-ES-09	17.5	13	28		130	129	126	120	109	98	85	75
R150-ES-10	20	15	32		147	144	141	131	120	108	95	82
R150-ES-11	25	18.5	40		158	157	153	144	132	115	102	89
R150-ES-13	25	18.5	40		190	185	181	175	158	140	123	109
R150-ES-15	30	22	46		218	215	210	200	183	153	138	123
R150-ES-18	35	26	54		260	257	251	240	220	185	170	148
R150-ES-21	40	30	62		310	302	294	280	258	215	193	168
R150-ES-26	50	37	80		380	368	355	340	316	265	235	195

Performance Curves

submersible pump curve

Dimensions

(Unit of Length: mm)
Model	H3	H2	H1	ΦA	ΦB	Φmax
R150-ES-02	1110	561	549	G3"	135	150
R150-ES-03	1214	601	613
R150-ES-04	1285	607	678
R150-ES-05	1377	642	735
R150-ES-06	1451	642	809
R150-ES-07	1554	682	872
R150-ES-08	1654	717	937
R150-ES-09	1749	747	1002
R150-ES-10	1861	794	1067
R150-ES-11	1957	824	1133
R150-ES-13	2084	824	1260
R150-ES-15	2295	864	1431
R150-ES-18	2546	921	1625
R150-ES-21	2799	981	1818
R150-ES-26	3232	1046	2186

Parts		Material
Delivery door		Cast iron
Suction support		Cast iron
Check value		Plastic(POM)
Valve support		Plastic(PPO/PC)
Shaft support		Plastic(PPO/PC)
Impeller		Plastic(PPO)
Diffuser		Plastic(POM)
Valve seal		Nitrile rubber(NBR)
Anti-wear washer		Nitrile rubber(NBR)
Pump bearing		Nitrile rubber(NBR)
Pump body		AISI 304
Cable cover		AISI 304
Filter		AISI 304
Shaft		2Cr13
Shaft coupling		AISI 304
Bushing		AISI 304
