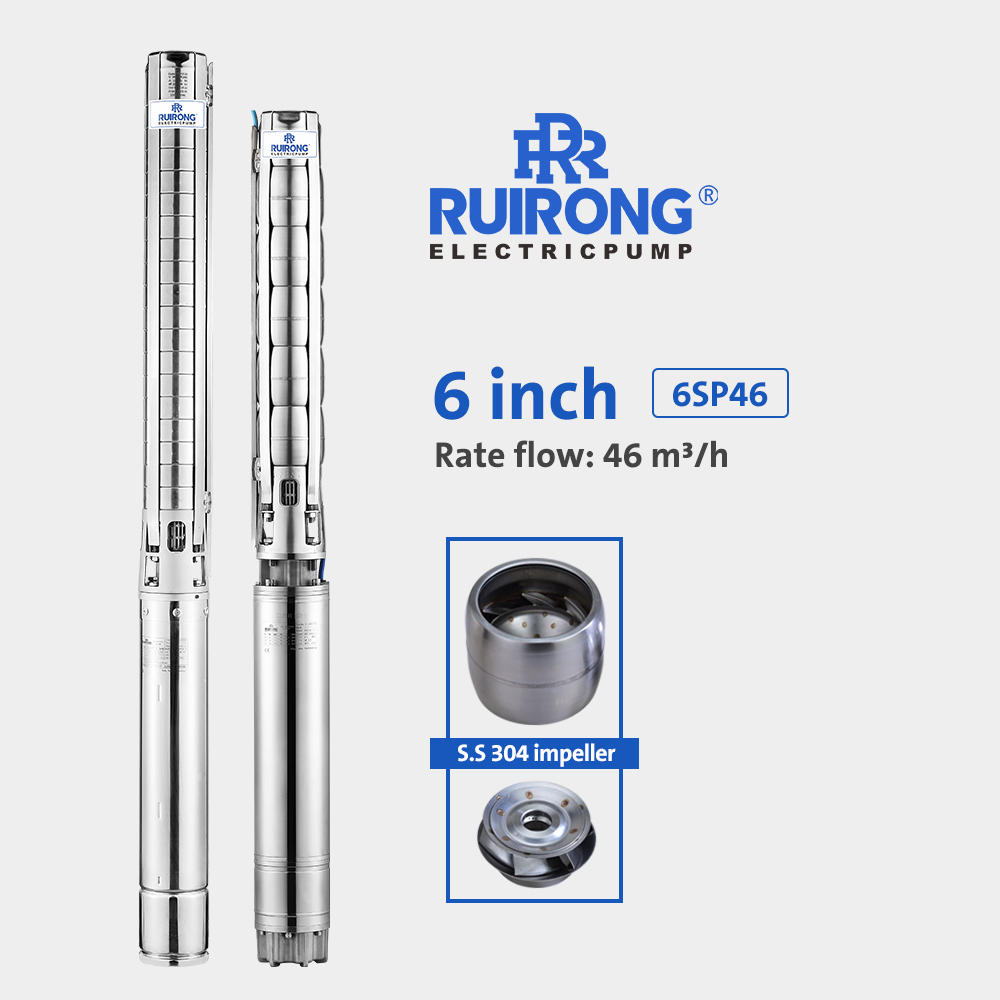

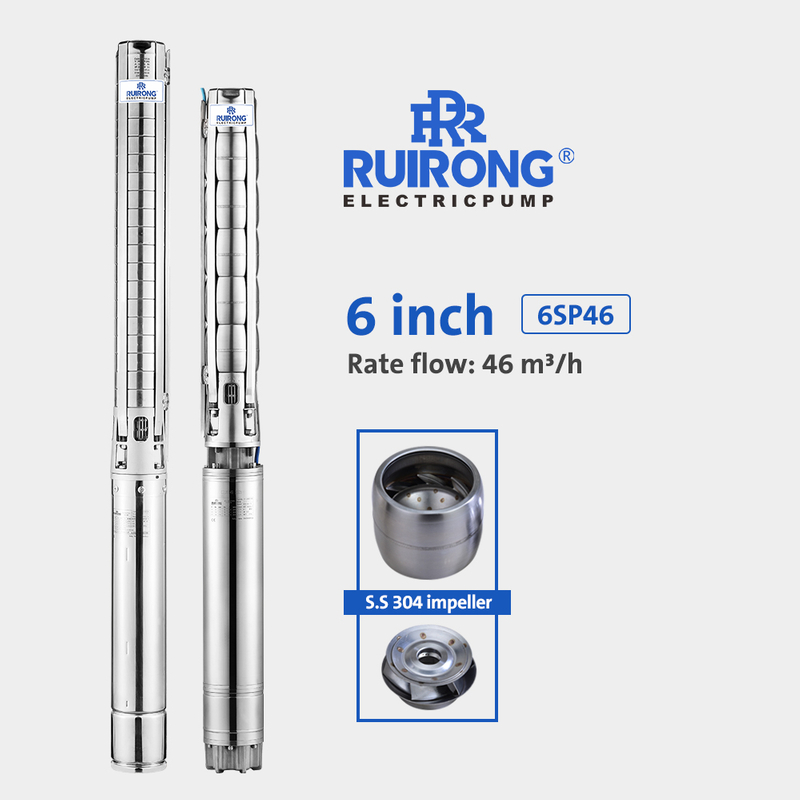

RUIRONG PUMP 6 inch SP Submersible pump manufacturer full stainless steel well pump

Share to:

RUIRONG PUMP 6 inch SP Submersible pump manufacturer full stainless steel well pump

Name: RUIRONG PUMP 6 inch SP Submersible pump manufacturer full stainless steel well pump
Brand: RUIRONG
Rating: 5.0 (60 reviews)

Availability:

Quantity:



Inquire Add to Basket

Model:
6SP46
Brand:
RUIRONG

Product Description

Features

1. All components are made from 100% SS304 stainless steel, ensuring a corrosion-resistant, environmentally-friendly design that maintains water quality without secondary contamination.

2. The system includes a check valve to safeguard against backflow pressure when the electric pump halts. Optionally, drain holes can be added to the check valve seat, allowing slow drainage to prevent pipeline freezing during winter.

3. The stainless steel impeller offers superior wear resistance and a longer lifespan compared to ordinary plastic or brass impellers, enhancing pump efficiency and stability while ensuring extended durability.

4. A stainless steel sand net effectively prevents sand and large particles from entering the pump body.

5. A specially designed thrust bearing is installed to protect the pump from damage during startup and transportation.

Specifications

Model 50Hz	Motor Power		Three Phase	Q	Capacity
				US.gpm	0	106	132	158	202	211	220	238
				m³/h	0	24	30	36	46	48	50	54
			380V	L/min	0	400	500	600	766	800	833	900
	HP	kW	A	Total head in meters
6SP46-01	3	2.2	6.2	H (m)	14	12	11	10	9	9	8	7
6SP46-02	4	3	8.3		27	24	22	20	18	17	16	14
6SP46-03	7.5	5.5	13		41	35	33	31	27	26	24	22
6SP46-04	10	7.5	17		54	47	44	41	36	34	32	29
6SP46-05	10	7.5	17		68	59	55	51	46	43	40	36
6SP46-06	12.5	9.2	21		82	71	66	61	55	52	48	43
6SP46-07	15	11	24		95	83	77	72	64	60	56	50
6SP46-08	17.5	13	28		109	94	88	82	73	69	65	58
6SP46-09	20	15	32		122	106	99	92	82	77	73	65
6SP46-10	20	15	32		136	118	110	102	91	86	81	72
6SP46-11	25	18.5	40		150	130	121	112	100	95	89	79
6SP46-12	25	18.5	40		163	142	132	123	109	103	97	86
6SP46-13	30	22	46		177	153	143	133	119	112	105	94
6SP46-14	30	22	46		190	165	154	143	128	121	113	101
6SP46-15	30	22	46		204	177	165	153	137	129	121	108
6SP46-16	35	26	54		218	189	176	163	146	138	129	115
6SP46-17	35	26	54		231	201	187	174	155	146	137	122
6SP46-18	40	30	62		245	212	198	184	164	155	145	130
6SP46-19	40	30	62		258	224	209	194	173	164	153	137
6SP46-20	40	30	62		272	236	220	204	182	172	161	144
6SP46-21	50	37	74		286	248	231	215	192	181	169	151
6SP46-22	50	37	74		299	260	242	225	201	189	177	158
6SP46-23	50	37	74		313	271	253	235	210	198	185	166
6SP46-24	50	37	74		326	283	264	245	219	207	194	173
6SP46-26	60	45	91.4		354	307	286	266	237	224	210	187
6SP46-28	60	45	91.4		381	330	308	286	255	241	226	202
6SP46-30	60	45	91.4		408	354	330	307	274	258	242	216
6SP46-33	75	55	117		449	389	363	337	301	284	266	238
6SP46-35	75	55	117		476	413	385	358	319	301	282	252
6SP46-37	75	55	117		503	437	407	378	338	318	298	266

Performance Curves

well

submersible well pump

Dimensions

(Unit of Length: mm)
Model	H3	H2	H1	ΦA	ΦB	Φmax
6SP46-01	824	454	370	G3"/G4"	95	145
6SP46-02	1166	667	499		95
6SP46-03	1314	702	612		144
6SP46-04	1467	742	725
6SP46-05	1615	777	838
6SP46-06	1758	807	951
6SP46-07	1896	832	1064
6SP46-08	2039	862	1177
6SP46-09	2207	917	1290
6SP46-10	2320	917	1403
6SP46-11	2483	967	1516
6SP46-12	2596	967	1629
6SP46-13	2759	1017	1742
6SP46-14	2872	1017	1855
6SP46-15	2985	1017	1698
6SP46-16	3143	1062	2081
6SP46-17	3256	1062	2194
6SP46-18	3424	1117	2307
6SP46-19	3537	1117	2420
6SP46-20	3650	1117	2533
6SP46-21	3853	1207	2646
6SP46-22	3966	1207	2759
6SP46-23	4079	1207	2872
6SP46-24	4192	1207	2985
6SP46-26	4203	1105	3098
6SP46-28	4316	1105	3324
6SP46-30	4429	1105	3324
6SP46-33	4850	1413	3437
6SP46-35	4963	1413	3550
6SP46-37	5076	1413	3663

Parts		Material
Shaft		AISI 304(316L)
Coupling		AISI 304(316L)
Check value		AISI 304(316L)
Pump body		AISI 304(316L)
Impeller		AISI 304(316L)
Diffuser		AISI 304(316L)
Bearing		Wear resistant rubber
Suction strainer		AISI 304(316L)
Suction support		AISI 304(316L)
Delivery body		AISI 304(316L)
