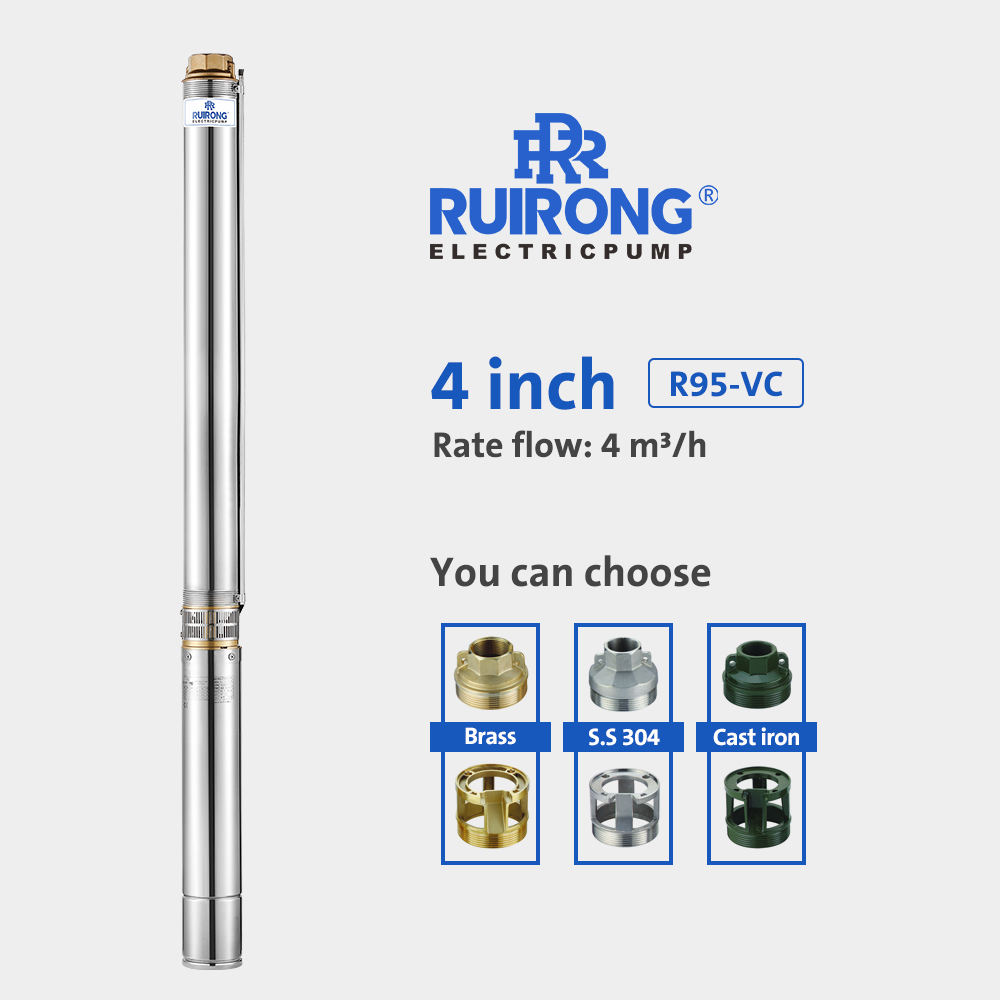

RUIRONG pump 4 inch submersible pump submersible fountain pump deep well pump

Share to:

RUIRONG pump 4 inch submersible pump submersible fountain pump deep well pump

Name: RUIRONG pump 4 inch submersible pump submersible fountain pump deep well pump
Brand: RUIRONG
Rating: 5.0 (39 reviews)

Availability:

Quantity:



Inquire Add to Basket

Model:
R95-VC
Brand:
RUIRONG

Product Description

Features

1. 304 stainless steel pump tube is used, which is beautiful and corrosion-resistant.

2. POM impeller and PPO guide shell are used, which are resistant to high temperature and corrosion, have high mechanical strength and long service life.

3. Multi-stage floating impeller design effectively reduces the starting torque requirements, is not easy to get stuck due to trace fine sand (strong sand passing ability), and increases the service life of the motor.

The pump head material can be selected from copper alloy, 304/316, and cast iron (rust-proof treatment).

Specifications

Model 50Hz	Motor Power		Three Phase	Single Phase			Q	Capacity
							US.gpm	0	8.8	13.2	15.4	17.6	19.8	22	24.2
							m³/h	0	2	3	3.5	4	4.5	5	5.5
			380V	220V			L/min	0	33	50	58	67	75	83	92
	HP	kW	A	A	μF	VC	Total head in meters
R95-VC-06	0.75	0.55	2	4.8	25	450	H (m)	46	42	38	36	32	30	25	20
R95-VC-09	1	0.75	2.5	6.3	35	450		63	58	55	50	48	40	36	29
R95-VC-12	1.5	1.1	3.4	8.6	45	450		86	80	76	68	64	56	48	38
R95-VC-16	2	1.5	4.4	10	55	450		115	105	101	90	85	75	64	51
R95-VC-20	3	2.2	6.2	14	70	450		150	142	130	120	107	98	85	75
R95-VC-24	4	3	8.3	19.5	80	450		175	170	152	148	138	120	100	88
R95-VC-28	4	3	8.3	19.5	80	450		210	195	178	168	150	138	120	100
R95-VC-37	5.5	4	10.3	27	120	450		268	255	230	210	190	168	138	105
R95-VC-50	7.5	5.5	14	-	-	-		370	350	330	305	280	250	215	165
R95-VC-60	10	7.5	18.5	-	-	-		438	420	378	348	330	288	240	180
R95-VC-70	10	7.5	18.5	-	-	-		511	490	441	406	385	336	280	210

Performance Curves

submersible water pump

Dimensions

(Unit of Length: mm)
Model	H3	H2	H1	ΦA	ΦB	Φmax
R95-VC-06	784	366	418	G1 1/2"	95	100
R95-VC-09	864	386	478
R95-VC-12	974	406	568
R95-VC-16	1132	441	691
R95-VC-20	1344	501	843
R95-VC-24	1571	561	1010
R95-VC-28	1689	561	1128
R95-VC-37	2006	601	1405
R95-VC-50	2566	721	1845
R95-VC-60	3012	841	2171
R95-VC-70	3336	841	2495

Parts		Material
Delivery door		Brass
Suction support		Brass
Check value		Plastic(POM)
Valve support		Plastic(PPO/PC)
Shaft support		Plastic(PPO/PC)
Impeller		Plastic(PPO)
Diffuser		Plastic(POM)
Valve seal		Nitrile rubber(NBR)
Anti-wear washer		Nitrile rubber(NBR)
Pump bearing		Nitrile rubber(NBR)
Pump body		AISI 304
Cable cover		AISI 304
Filter		AISI 304
Shaft		2Cr13
Shaft coupling		AISI 304
Bushing		AISI 304
