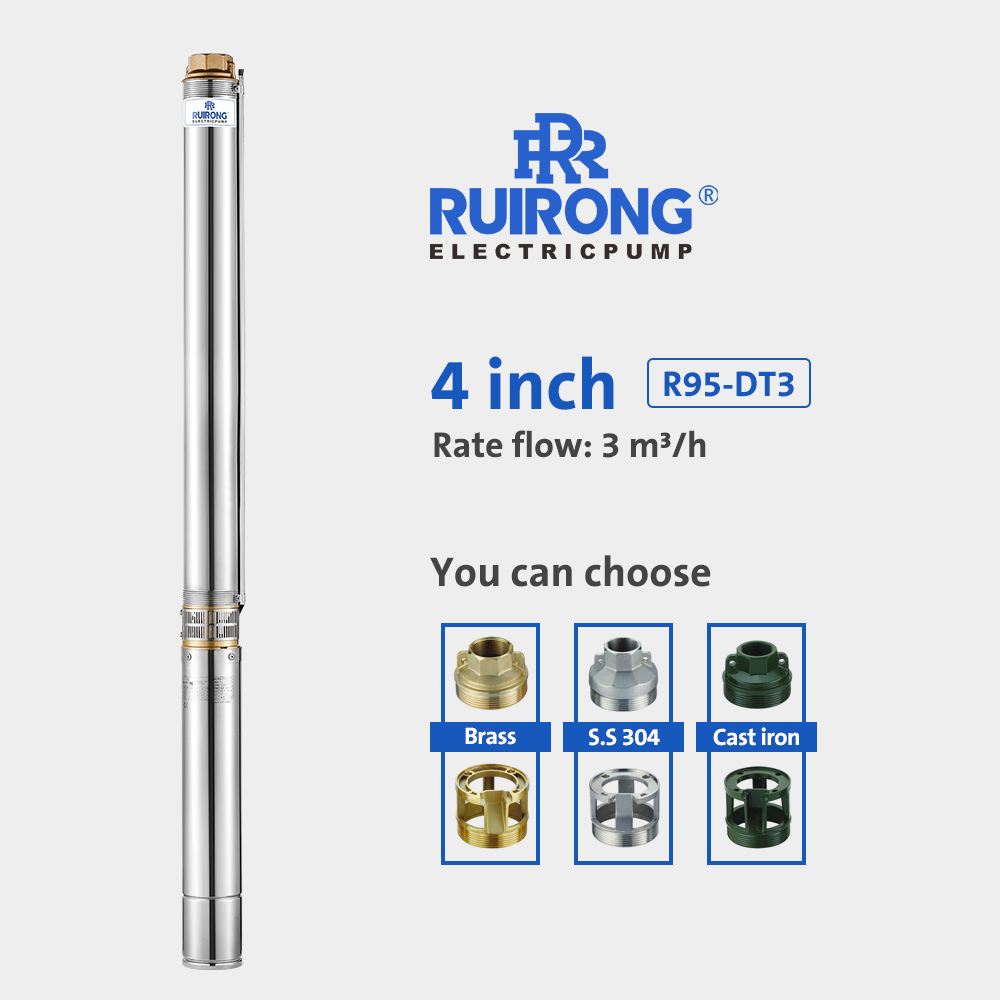

RUIRONG PUMP 4 inch Submersible water pump deep well stainless steel pump manufacturer

Share to:

RUIRONG PUMP 4 inch Submersible water pump deep well stainless steel pump manufacturer

Name: RUIRONG PUMP 4 inch Submersible water pump deep well stainless steel pump manufacturer
Brand: RUIRONG
Rating: 5.0 (85 reviews)

Availability:

Quantity:



Inquire Add to Basket

Model:
R95-DT3
Brand:
RUIRONG

Product Description

Features

1. 304 stainless steel pump tube is used, which is beautiful and corrosion-resistant.

2. POM impeller and PPO guide shell are used, which are resistant to high temperature and corrosion, have high mechanical strength and long service life.

3. Multi-stage floating impeller design effectively reduces the starting torque requirements, is not easy to get stuck due to trace fine sand (strong sand passing ability), and increases the service life of the motor.

The pump head material can be selected from copper alloy, 304/316, and cast iron (rust-proof treatment).

Specifications

Model 50Hz	Motor Power		Three Phase	Single Phase			Q	Capacity
							US.gpm	0	5.3	7.9	10.6	13.2	15.8	18.5	21.1
							m³/h	0	1.2	1.8	2.4	3	3.6	4.2	4.8
			380V	220V			L/min	0	20	30	40	50	60	70	80
	HP	kW	A	A	μF	VC	Total head in meters
R95-DT3-05	0.33	0.25	-	2.5	15	450	H (m)	34	33	31	29	25	20	14	7
R95-DT3-07	0.5	0.37	1.8	3.6	20	450		47	46	44	40	35	28	20	10
R95-DT3-09	0.75	0.55	2	4.8	25	450		61	59	56	52	45	36	25.5	13
R95-DT3-11	1	0.75	2.5	6.3	35	450		74	72	69	63	55	44	31	15.4
R95-DT3-13	1	0.75	2.5	6.3	35	450		87.5	85	81	74.5	65	52	37	18
R95-DT3-15	1.5	1.1	3.4	8.6	45	450		101	99	94	86	75	61	43	21
R95-DT3-17	1.5	1.1	3.4	8.6	45	450		114	112	107	97	85	68.5	48	24
R95-DT3-19	2	1.5	4.4	10	55	450		128	125	119	109	95	77	54	27
R95-DT3-21	2	1.5	4.4	10	55	450		141	138	132	120	105	85	60	29
R95-DT3-26	3	2.2	6.2	14	70	450		175	171	163	149	130	105	74	36
R95-DT3-30	3	2.2	6.2	14	70	450		202	197	188	172	150	121	85	42

Performance Curves

380v water pump

Dimensions

(Unit of Length: mm)
Model	H3	H2	H1	ΦA	ΦB	Φmax
R95-DT3-05	616	253	363	G1 1/4"	95	100
R95-DT3-07	768	351	417
R95-DT3-09	837	366	471
R95-DT3-11	912	386	526
R95-DT3-13	966	386	580
R95-DT3-15	1040	406	634
R95-DT3-17	1094	406	688
R95-DT3-19	1215	441	774
R95-DT3-21	1269	441	828
R95-DT3-26	1464	501	963
R95-DT3-30	1572	501	1071

Parts		Material
Delivery door		Brass
Suction support		Brass
Check value		Plastic(POM)
Valve support		Plastic(PPO/PC)
Shaft support		Plastic(PPO/PC)
Impeller		Plastic(PPO)
Diffuser		Plastic(POM)
Valve seal		Nitrile rubber(NBR)
Anti-wear washer		Nitrile rubber(NBR)
Pump bearing		Nitrile rubber(NBR)
Pump body		AISI 304
Cable cover		AISI 304
Filter		AISI 304
Shaft		2Cr13
Shaft coupling		AISI 304
Bushing		AISI 304
