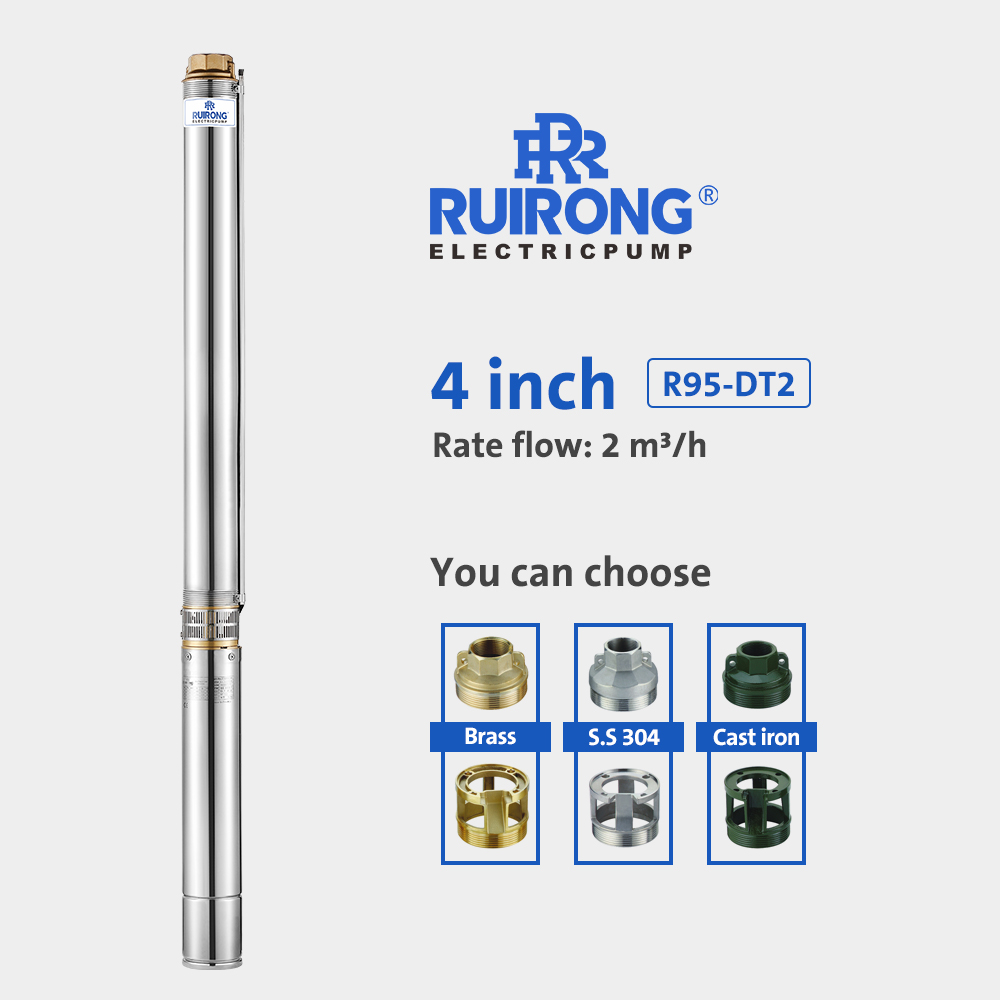

RUIRONG PUMP 4 inch submersible pump submersible irrigation pump

Share to:

RUIRONG PUMP 4 inch submersible pump submersible irrigation pump

Name: RUIRONG PUMP 4 inch submersible pump submersible irrigation pump
Brand: RUIRONG
Rating: 5.0 (47 reviews)

Availability:

Quantity:



Inquire Add to Basket

Model:
R95-DT2
Brand:
RUIRONG

Product Description

Features

1. 304 stainless steel pump tube is used, which is beautiful and corrosion-resistant.

2. POM impeller and PPO guide shell are used, which are resistant to high temperature and corrosion, have high mechanical strength and long service life.

3. Multi-stage floating impeller design effectively reduces the starting torque requirements, is not easy to get stuck due to trace fine sand (strong sand passing ability), and increases the service life of the motor.

The pump head material can be selected from copper alloy, 304/316, and cast iron (rust-proof treatment).

Specifications

Model 50Hz	Motor Power		Three Phase	Single Phase			Q	Capacity
							US.gpm	0	4	6.6	9.2	10.6	11.9	13.2	14.5
							m³/h	0	0.9	1.5	2.1	2.4	2.7	3	3.3
			380V	220V			L/min	0	15	25	35	40	45	50	55
	HP	kW	A	A	μF	VC	Total head in meters
R95-DT2-06	0.33	0.25	-	2.5	15	450	H (m)	40	40	37	32	28	24	20	13
R95-DT2-08	0.55	0.37	1.8	3.6	20	450		53	53	48	40	34	28	22	14
R95-DT2-11	0.75	0.55	2	4.8	25	450		73	73	66	55	47	39	30	19
R95-DT2-14	1	0.75	2.5	6.3	35	450		95	95	86	70	61	53	38	26
R95-DT2-16	1	0.75	2.5	6.3	35	450		109	109	98	80	70	60	43	30
R95-DT2-19	1.5	1.1	3.4	8.6	45	450		129	129	116	95	83	71	51	36
R95-DT2-22	1.5	1.1	3.4	8.6	45	450		150	150	135	110	96	83	59	41
R95-DT2-25	2	1.5	4.4	10	55	450		170	170	153	125	109	94	67	47
R95-DT2-28	2	1.5	4.4	10	55	450		191	191	172	140	123	105	75	53
R95-DT2-33	3	2.2	6.2	14	70	450		225	225	202	165	144	124	89	62
R95-DT2-38	3	2.2	6.2	14	70	450		259	259	233	190	166	143	102	71

Performance Curves

2 hp submersible deep well pump

Dimensions

(Unit of Length: mm)
Model	H3	H2	H1	ΦA	ΦB	Φmax
R95-DT2-06	628	253	375	G1 1/4"	95	100
R95-DT2-08	775	351	424
R95-DT2-11	864	366	498
R95-DT2-14	958	386	572
R95-DT2-16	1007	386	621
R95-DT2-19	1132	406	726
R95-DT2-22	1206	406	726
R95-DT2-25	1314	441	873
R95-DT2-28	1388	441	947
R95-DT2-33	1571	501	1070
R95-DT2-38	1693	501	1192

Parts		Material
Delivery door		Brass
Suction support		Brass
Check value		Plastic(POM)
Valve support		Plastic(PPO/PC)
Shaft support		Plastic(PPO/PC)
Impeller		Plastic(PPO)
Diffuser		Plastic(POM)
Valve seal		Nitrile rubber(NBR)
Anti-wear washer		Nitrile rubber(NBR)
Pump bearing		Nitrile rubber(NBR)
Pump body		AISI 304
Cable cover		AISI 304
Filter		AISI 304
Shaft		2Cr13
Shaft coupling		AISI 304
Bushing		AISI 304
