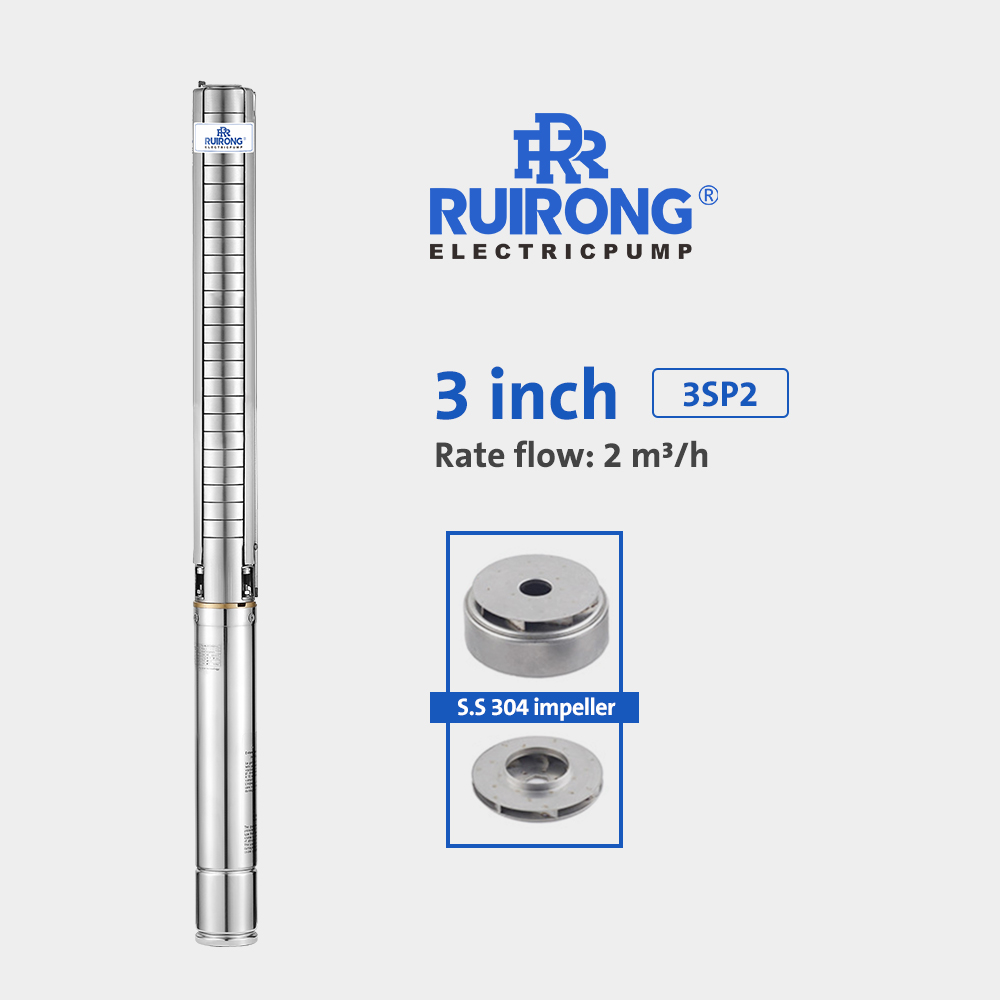

3SP2
RUIRONG
1. Our products feature 100% SS304 stainless steel construction, ensuring corrosion resistance and eco-friendliness while preventing secondary pollution to water quality.
2. Designed with a check valve, our system prevents backflow pressure issues when the electric pump stops. Additionally, drain holes can be added to the check valve seat upon request to slowly release water from the pipeline, safeguarding against freezing during winter.
3. Our stainless steel impellers are far more wear-resistant and durable than standard plastic or brass versions, delivering high efficiency, enhanced stability, and a longer lifespan for the pump.
4. The stainless steel sand net effectively blocks sand or large particles from entering the pump body, protecting the system from damage.
Model 50Hz | Motor Power | Three Phase | Single Phase | Q | Capacity | ||||||||||
| US.gpm | 0 | 4.4 | 6.6 | 7.9 | 8.8 | 9.7 | 11 | 13.2 | |||||||
| m3/h | 0 | 1 | 1.5 | 1.8 | 2 | 2.2 | 2.5 | 3 | |||||||
| 380V | 220V | L/min | 0 | 17 | 25 | 30 | 33 | 36.7 | 42 | 50 | |||||
| HP | kW | A | A | μF | VC | Total head in meters | |||||||||
| 3SP2-08 | 0.33 | 0.25 | - | 2.5 | 10 | 450 | H (m) | 28 | 26 | 25 | 24 | 22 | 20 | 17 | 11 |
| 3SP2-11 | 0.55 | 0.37 | 1.8 | 3.3 | 12 | 450 | 39 | 36 | 34 | 32 | 30 | 29 | 24 | 15 | |
| 3SP2-17 | 0.75 | 0.55 | 2.1 | 4.4 | 15 | 450 | 60 | 56 | 52 | 49 | 46 | 43 | 37 | 23 | |
| 3SP2-24 | 1.1 | 0.75 | 2.5 | 5.7 | 20 | 450 | 85 | 79 | 74 | 69 | 65 | 61 | 52 | 33 | |
| 3SP2-32 | 1.5 | 1.1 | 3.5 | 8 | 30 | 450 | 106 | 97 | 92 | 87 | 83 | 77 | 65 | 40 | |
 | (Unit of Length: mm) | ||||||
| Model | H3 | H2 | H1 | ΦA | ΦB | Φmax | |
| 3SP2-08 | 644 | 354 | 290 | G2" | 70 | 75 | |
| 3SP2-11 | 724 | 374 | 350 | ||||
| 3SP2-17 | 864 | 394 | 470 | ||||
| 3SP2-24 | 1044 | 434 | 610 | ||||
| 3SP2-32 | 1204 | 434 | 770 | ||||
| Parts | Material | ||||||
| Shaft | AISI 304(316L) | ||||||
| Coupling | AISI 304(316L) | ||||||
| Check value | AISI 304(316L) | ||||||
| Pump body | AISI 304(316L) | ||||||
| Impeller | AISI 304(316L) | ||||||
| Diffuser | AISI 304(316L) | ||||||
| Bearing | Wear resistant rubber | ||||||
| Suction strainer | AISI 304(316L) | ||||||
| Suction support | AISI 304(316L) | ||||||
| Delivery body | AISI 304(316L) | ||||||
