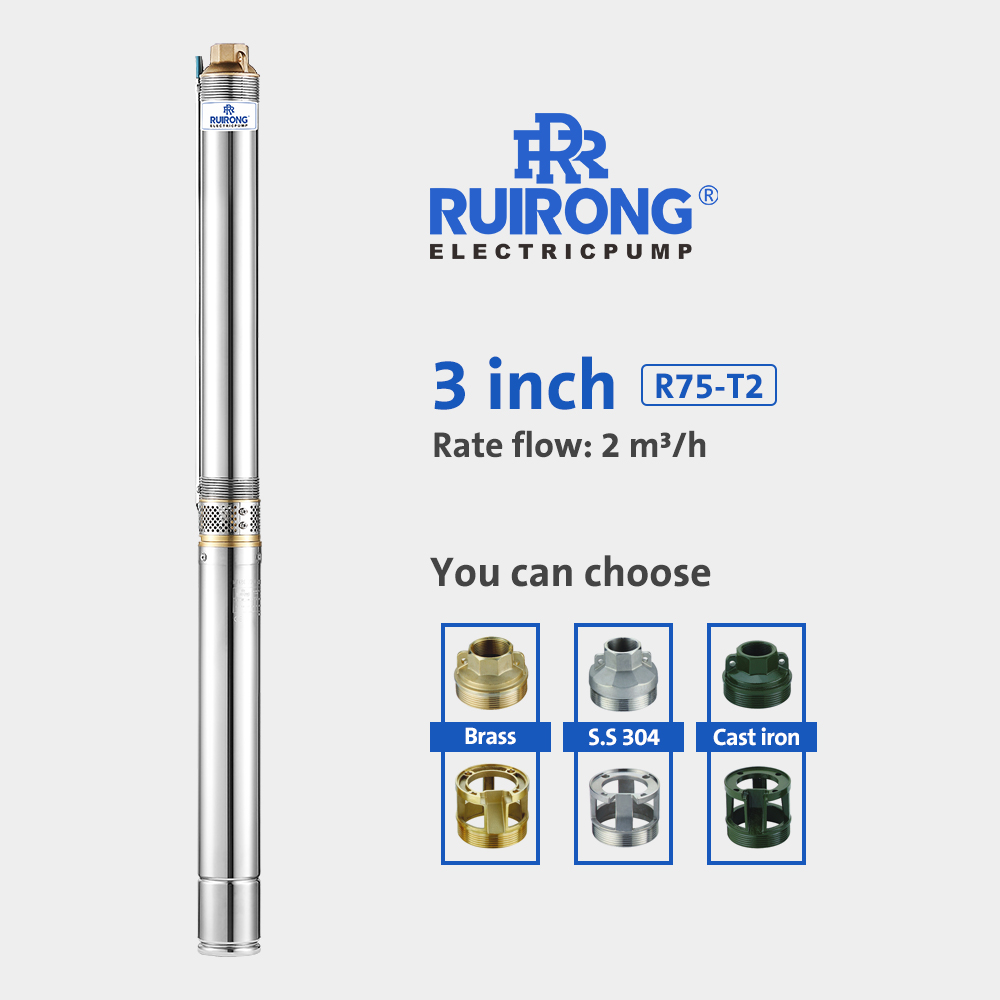

R75-T2
RUIRONG
1. Water-lubricated wear-resistant rubber bearings are used, which can effectively reduce vibration, resist wear and be durable.
2. The floating impeller design effectively reduces the impact of axial force on the impeller and has strong sand-passing ability
Model 50Hz | Motor Power | Three Phase | Single Phase | Q | Capacity | ||||||||||
| US.gpm | 0 | 2.6 | 5.3 | 7.9 | 9.2 | 10.6 | 11.9 | 13.2 | |||||||
| m3/h | 0 | 0.6 | 1.2 | 1.8 | 2.1 | 2.4 | 2.7 | 3 | |||||||
| 380V | 220V | L/min | 0 | 10 | 20 | 30 | 35 | 40 | 45 | 50 | |||||
| HP | kW | A | A | μF | VC | Total head in meters | |||||||||
| R75-T2-09 | 0.33 | 0.25 | - | 2.5 | 10 | 450 | H (m) | 39 | 37 | 35 | 29 | 25 | 19 | 13 | 5.5 |
| R75-T2-14 | 0.55 | 0.37 | 1.8 | 3.3 | 12 | 450 | 60 | 58 | 54 | 46 | 39 | 30 | 18 | 5.7 | |
| R75-T2-20 | 0.75 | 0.55 | 2.1 | 4.4 | 15 | 450 | 86 | 84 | 78 | 63 | 56 | 43 | 24 | 5.9 | |
| R75-T2-26 | 1.1 | 0.75 | 2.5 | 5.7 | 20 | 450 | 116 | 113 | 103 | 87 | 73 | 62 | 34 | 8.5 | |
| R75-T2-36 | 1.5 | 1.1 | 3.5 | 8 | 30 | 450 | 159 | 151 | 145 | 118 | 105 | 80 | 50 | 11.6 | |
| R75-T2-45 | 2 | 1.5 | 4.4 | - | - | - | 196 | 189 | 181 | 152 | 130 | 100 | 67 | 12.2 | |
 | (Unit of Length: mm) | ||||||||
| Model | H1 | Three Phase | Single Phase | ΦA | ΦB | Φmax | |||
| H2 | H3 | H2 | H3 | ||||||
| R75-T2-09 | 412 | - | - | 354 | 762 | G1" | 70 | 75 | |
| R75-T2-14 | 524 | 354 | 878 | 374 | 898 | ||||
| R75-T2-20 | 660 | 374 | 1034 | 394 | 1054 | ||||
| R75-T2-26 | 795 | 394 | 1189 | 434 | 1229 | ||||
| R75-T2-36 | 1044 | 434 | 1478 | 474 | 1518 | ||||
| R75-T2-45 | 1247 | 474 | 1721 | - | - | ||||
| Parts | Material | ||||||||
| Delivery door | Brass | ||||||||
| Suction support | Brass | ||||||||
| Check valve | Plastic(POM) | ||||||||
| Valve support | Plastic(PPO/PC) | ||||||||
| Shaft support | Plastic(PPO/PC) | ||||||||
| Impeller | Plastic(PPO) | ||||||||
| Diffuser | Plastic(POM) | ||||||||
| Valve seal | Nitrile rubber(NBR) | ||||||||
| Anti-wear washer | Nitrile rubber(NBR) | ||||||||
| Pump bearing | Nitrile rubber(NBR) | ||||||||
| Pump body | AISI 304 | ||||||||
| Cable cover | AISI 304 | ||||||||
| Filter | AISI 304 | ||||||||
| Shaft | 2Cr13 | ||||||||
| Shaft coupling | AISI 304 | ||||||||
| Bushing | AISI 304 | ||||||||
