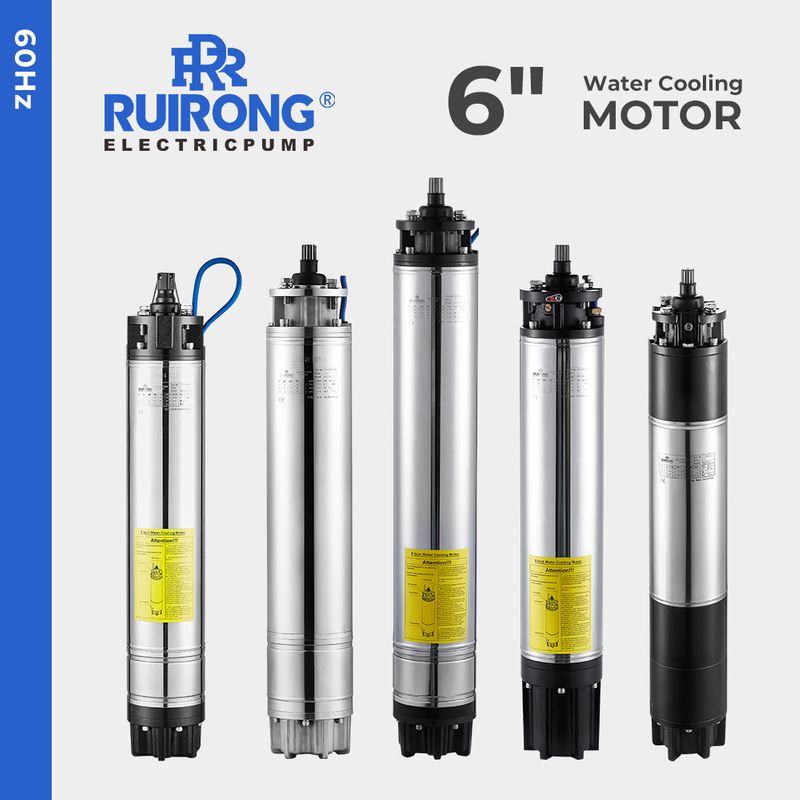

MS150
RUIRONG
1. Features a double flange connection with a spline design in accordance with NEMA standards.
2. Equipped with a high thrust bearing for enhanced durability.
3. Designed with rewindable pure copper diving wire (PE2) for low temperature rise and stable performance, making it ideal for extended continuous operation.
4. Includes a skeleton oil seal for effective sand control.
5. The water-filled motor supports frequency conversion with submersible wiring, making it perfect for constant pressure water supply, fountains, and use with a frequency converter.
| Three-phase 380/415V 50Hz | ||||||
| Model | kW | HP | Current(A) | CosΦ | rpm | L(mm) |
| MS150-5.5 | 5.5 | 7.5 | 12.3 | 0.88 | 3450 | 780 |
| MS150-7.5 | 7.5 | 10 | 16.3 | 0.88 | 3450 | 800 |
| MS150-9.2 | 9.2 | 12.5 | 21.2 | 0.9 | 3450 | 830 |
| MS150-11 | 11 | 15 | 24.5 | 0.9 | 3450 | 855 |
| MS150-13 | 13 | 17.5 | 28 | 0.91 | 3450 | 885 |
| MS150-15 | 15 | 20 | 32 | 0.91 | 3450 | 968 |
| MS150-18.5 | 18.5 | 25 | 39.5 | 0.91 | 3450 | 1018 |
| MS150-22 | 22 | 30 | 46.5 | 0.91 | 3450 | 1068 |
| MS150-26 | 26 | 35 | 54.7 | 0.92 | 3450 | 1113 |
| MS150-30 | 30 | 40 | 61.4 | 0.93 | 3450 | 1168 |
| MS150-37 | 37 | 50 | 72.5 | 0.93 | 3450 | 1200 |
