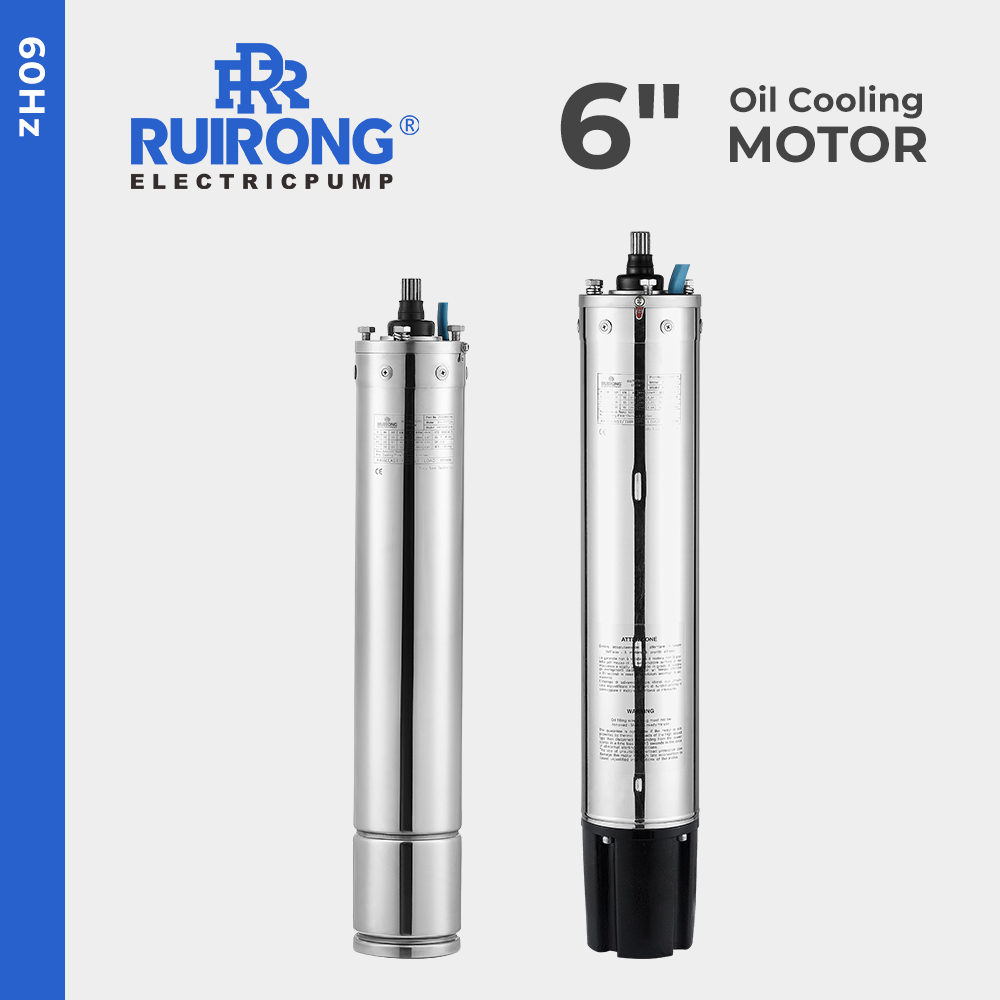

M150
RUIRONG
1. Precision Italian Mechanical Seals: Efficiency and Reliability
2. Durable Stainless Steel Construction: Motor Housing and Bottom Cover Made of 304 Stainless Steel
3. Advanced Silicon Steel Lamination: Cold-Rolled for High Efficiency, Low Loss, and Superior Magnetic Conductivity
4. Long-Lasting Performance: High-Precision Silent Bearings for Enhanced Pump Longevity and Stability
5. High-Temperature Resilience: H-Class (200 Degrees) Pure Copper Wire Stator for Safe, Reliable, and Eco-Friendly Long-Term Use
6. Low Starting Voltage: Operates Efficiently at Just 180V
| Three-phase 380/415V 50Hz | ||||||
| Model | kW | HP | Current(A) | CosΦ | rpm | L(mm) |
| M150-5.5 | 5.5 | 7.5 | 11.3 | 0.88 | 3450 | 580 |
| M150-7.5 | 7.5 | 10 | 15.2 | 0.88 | 3450 | 620 |
| M150-9.2 | 9.2 | 12.5 | 18.4 | 0.9 | 3450 | 655 |
| M150-11 | 11 | 15 | 21.6 | 0.9 | 3450 | 685 |
| M150-13 | 13 | 17.5 | 25.4 | 0.91 | 3450 | 715 |
| M150-15 | 15 | 20 | 28.2 | 0.91 | 3450 | 755 |
| M150-18.5 | 18.5 | 25 | 34.5 | 0.91 | 3450 | 820 |
| M150-22 | 22 | 30 | 40.8 | 0.91 | 3450 | 880 |
| M150-26 | 26 | 35 | 50.5 | 0.92 | 3450 | 930 |
| M150-30 | 30 | 40 | 57.7 | 0.93 | 3450 | 980 |
| M150-37 | 37 | 50 | 71 | 0.93 | 3450 | 1118 |
1. Precision Italian Mechanical Seals: Efficiency and Reliability
2. Durable Stainless Steel Construction: Motor Housing and Bottom Cover Made of 304 Stainless Steel
3. Advanced Silicon Steel Lamination: Cold-Rolled for High Efficiency, Low Loss, and Superior Magnetic Conductivity
4. Long-Lasting Performance: High-Precision Silent Bearings for Enhanced Pump Longevity and Stability
5. High-Temperature Resilience: H-Class (200 Degrees) Pure Copper Wire Stator for Safe, Reliable, and Eco-Friendly Long-Term Use
6. Low Starting Voltage: Operates Efficiently at Just 180V
| Three-phase 380/415V 50Hz | ||||||
| Model | kW | HP | Current(A) | CosΦ | rpm | L(mm) |
| M150-5.5 | 5.5 | 7.5 | 11.3 | 0.88 | 3450 | 580 |
| M150-7.5 | 7.5 | 10 | 15.2 | 0.88 | 3450 | 620 |
| M150-9.2 | 9.2 | 12.5 | 18.4 | 0.9 | 3450 | 655 |
| M150-11 | 11 | 15 | 21.6 | 0.9 | 3450 | 685 |
| M150-13 | 13 | 17.5 | 25.4 | 0.91 | 3450 | 715 |
| M150-15 | 15 | 20 | 28.2 | 0.91 | 3450 | 755 |
| M150-18.5 | 18.5 | 25 | 34.5 | 0.91 | 3450 | 820 |
| M150-22 | 22 | 30 | 40.8 | 0.91 | 3450 | 880 |
| M150-26 | 26 | 35 | 50.5 | 0.92 | 3450 | 930 |
| M150-30 | 30 | 40 | 57.7 | 0.93 | 3450 | 980 |
| M150-37 | 37 | 50 | 71 | 0.93 | 3450 | 1118 |
