Installing a submersible well pump might sound like a challenging task, but with the right tools, preparation, and guidance, it’s entirely manageable. Whether you’re a homeowner wanting to take on a DIY project or someone trying to better understand the process, this guide will show you how to safely and effectively install a submersible well pump.
By the end of this article, you’ll have the knowledge necessary to complete the installation, ensuring your water system is up and running efficiently. Here's how to get started.
A submersible well pump is a water pump that operates entirely under the surface of the water in a deep well. Unlike other pump types, it doesn’t need priming because it’s already submerged. This makes it extremely effective for drawing water efficiently, especially for well depths beyond 25 feet.
People often choose submersible well pumps for homes, farms, or properties where a reliable water source is essential. They're known for their durability, energy efficiency, and ability to supply steady water pressure over long periods.
Now that you understand the benefits, let's get to the steps for installation.
Before starting the installation, ensure you have the right tools and materials ready to go. Here’s a checklist to make sure you’re prepared:
● Pipe wrench or adjustable wrench
● Screwdrivers
● Wire cutters and crimpers
● Volt Ohm meter (to test electrical connections)
● Safety gloves and goggles
● Measuring tape
● Submersible well pump (sized for your well depth)
● Pump control box (if needed)
● Pump wiring kit
● PVC piping or galvanized steel pipe (depending on your system)
● Torque arrestor (reduces strain on the pump)
● Safety rope or stainless-steel cable
● Heat shrink connectors and electrical tape
● Well cap
Having all the tools and materials on hand ensures a smoother and safer process.
Breaking the job into smaller steps makes the task more approachable. Follow these six steps to complete the job:
Before you buy your submersible well pump, you’ll need to determine the depth of your well and its water level. To do this, you can use a weighted measuring tape.
Once you know the depth, select a pump that’s rated for your water level and required flow rate. Pumps are often labeled for specific ranges, so compare your well's depth to the pump specifications to ensure compatibility.
Take the submersible well pump out of its packaging and inspect it for any damage or manufacturing defects. Then, attach the necessary piping. Depending on your well’s setup, you’ll use either PVC or galvanized steel pipes.
● Install a Torque Arrestor: Attach this device just above the pump to prevent it from twisting or moving as the motor runs.
● Attach Safety Rope: Secure a safety rope or stainless-steel cable onto the pump for extra protection in case future maintenance is needed.
Your submersible well pump won’t run without proper electrical connections. Use the pump wiring kit to connect the motor wires to the pump control box or your power source, depending on the specific system.
● Use Heat Shrink Connectors: These connectors protect the wiring from potential water damage.
● Test the Wiring: Use a volt ohm meter to confirm the wiring is correct and that there are no shorts or loose connections.
Safety tip: Always turn off the circuit breaker when working with electrical components.

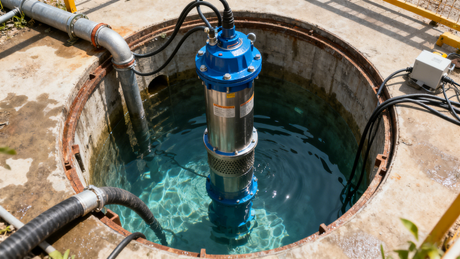

Here’s where the real work begins! This step requires careful handling, so make sure you enlist help if needed.
● Secure the Rope: Hold onto the safety rope tightly as you lower the pump.
● Guide the Pump: Slowly guide the pump into the well casing. Be cautious to avoid scraping the sides or getting the wire trapped.
● Tie Off the Rope: Once the pump is in position, tie off the safety rope at the well cap to keep the pump secure.
After the pump is in place, install the well seal to protect the casing from contaminants. Most well seals come with pre-drilled holes for wiring and piping, so follow the manufacturer's instructions for proper installation.
Then attach the well cap to seal everything off. This prevents debris, pests, and water from entering your well system.
Turn the power back on and check your submersible well pump. Run water through your system to test the flow rate and water pressure. If everything works smoothly, congratulations! You’ve successfully installed your pump.
If there are any issues (like low pressure or inconsistent flow), double-check your wiring and ensure the pump is positioned correctly.
To extend the lifespan of your pump, regular maintenance is key. Here are some tips to keep it in great shape:
● Inspect Wiring and Connections:
Perform periodic inspections to ensure that electrical connections are solid and free from corrosion.
● Monitor Flow Rate:
Keep an eye on water pressure and flow. Sudden changes might indicate an issue with the pump or a clogged pipe.
● Service as Required:
Submersible well pumps typically last 8–15 years, but issues such as sediment accumulation or motor wear can shorten their lifespan. Schedule regular servicing by a professional.
While the installation process requires effort, a well-functioning submersible well pump offers consistent and reliable water access. It’s a long-term investment, significantly improving your water system’s efficiency and convenience.
If you’re uncertain about any part of this process, contacting a professional is always a safe option. They can ensure proper installation and provide tips tailored to your specific setup.
