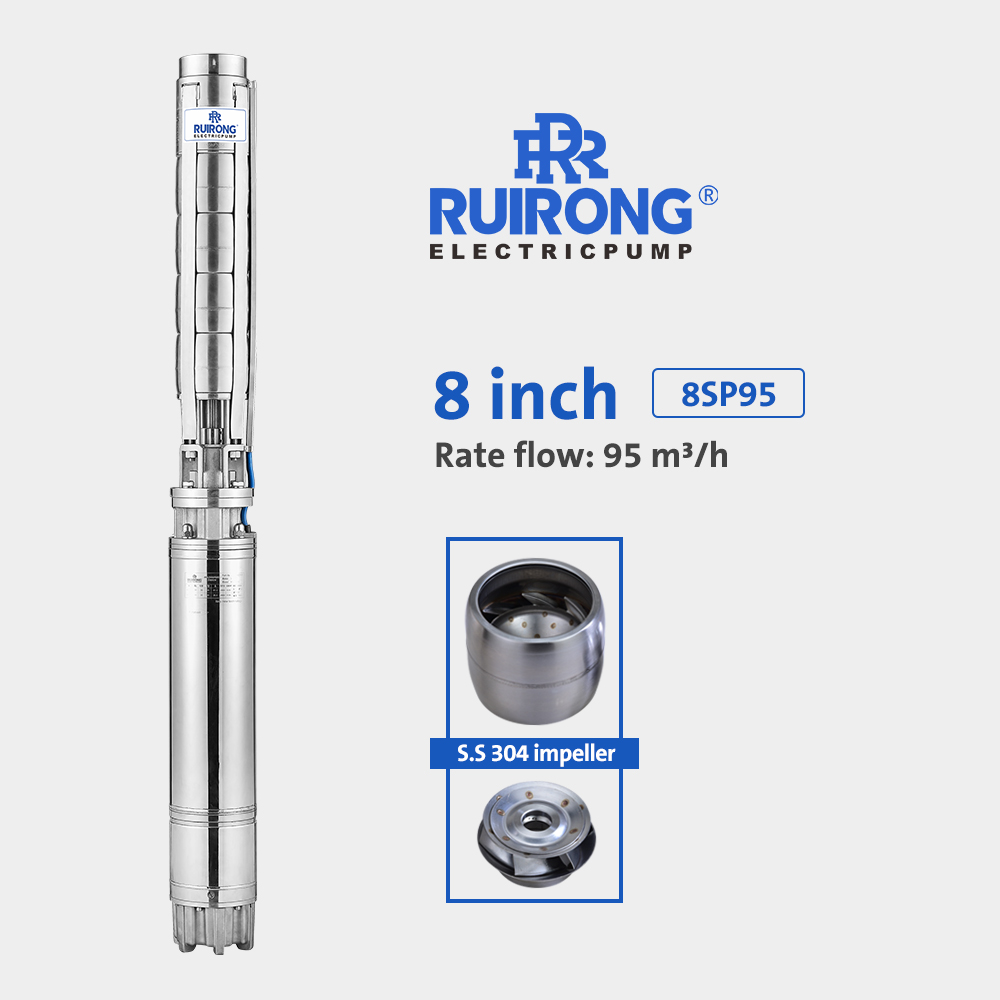

RUIRONG PUMP 8 inch SP submersible pump full stainless steel submersible pump brands

Share to:

RUIRONG PUMP 8 inch SP submersible pump full stainless steel submersible pump brands

Name: RUIRONG PUMP 8 inch SP submersible pump full stainless steel submersible pump brands
Brand: RUIRONG
Rating: 5.0 (68 reviews)

Availability:

Quantity:



Inquire Add to Basket

Model:
8SP95
Brand:
RUIRONG

Product Description

Features

1. Crafted entirely from 100% SS304 stainless steel, these metal materials boast a corrosion-resistant structure that is both clean and eco-friendly, ensuring no secondary pollution affects water quality.

2. Equipped with a check valve, this system effectively prevents backflow water pressure impact when the electric pump halts. Additionally, customizable drain holes can be added to the check valve seat to gradually release water from the pipeline, protecting it from winter freezes.

3. The all-stainless steel impeller is notably more wear-resistant and durable than traditional plastic or brass impellers, enhancing pump efficiency, stability, and longevity.

4. A stainless steel sand net is included to filter out sand and large particles, safeguarding the pump body from potential damage.

5. A specialized thrust bearing is installed to prevent damage during the pump's startup and transportation phases.

Specifications

Model 50Hz	Motor Power		Three Phase	Q	Capacity
				US.gpm	0	198	264	352	396	418	462	528
				m³/h	0	45	60	80	90	95	105	120
			380V	L/min	0	750	1000	1333	1500	1583	1750	2000
	HP	kW	A	Total head in meters
8SP95-01	7.5	5.5	13.6	H (m)	21	18	16	14	12.5	12	10	6
8SP95-02	12.5	9.2	21.7		42	36	33	28	25	24	20	13
8SP95-03	17.5	13	29.8		63	54	49	41	38	36	29	19
8SP95-04	25	18.5	41.6		84	72	66	55	50	48	39	26
8SP95-05	30	22	48.2		105	90	82	69	63	60	49	32
8SP95-06	35	26	54.5		126	108	99	83	75	72	59	38
8SP95-07	40	30	65.4		147	126	115	97	88	84	68	45
8SP95-08	50	37	79.7		168	142	132	110	100	96	78	51
8SP95-09	50	37	79.7		189	160	149	124	113	108	88	57
8SP95-10	60	45	96.9		210	178	165	137	125	120	98	64
8SP95-11	75	55	117		231	196	181	152	138	132	107	70
8SP95-12	75	55	117		252	214	198	165	150	144	117	77
8SP95-13	75	55	117		273	232	214	179	163	156	127	83
8SP95-14	85	63	132		294	250	231	193	175	168	137	89
8SP95-15	85	63	132		315	268	247	207	188	180	146	96
8SP95-16	100	75	155		336	286	264	220	200	192	156	102
8SP95-17	100	75	155		357	304	280	234	213	204	166	1108
8SP95-18	125	93	185		378	322	297	248	225	216	176	115
8SP95-19	125	93	185		398	340	313	264	238	228	185	121
8SP95-20	125	93	185		420	358	330	276	250	240	195	128

Performance Curves

water supply system

water pump

Dimensions

(Unit of Length: mm)
Model	H3	H2	H1	ΦA	ΦB	Φmax
8SP95-01	1162	748	414	G5"	191	200
8SP95-02	1331	813	518
8SP95-03	1490	868	622
8SP95-04	1699	973	726
8SP95-05	1853	1023	830
8SP95-06	2002	1068	934
8SP95-07	2212	1174	1038
8SP95-08	2361	1219	1142
8SP95-09	2465	1219	1246
8SP95-10	2624	1274	1350
8SP95-11	2728	1274	1454
8SP95-12	2967	1409	1558
8SP95-13	3071	1409	1662
8SP95-14	3235	1469	1766
8SP95-15	3339	1469	1870
8SP95-16	3513	1539	1974
8SP95-17	3617	1539	2078
8SP95-18	3811	1629	2182
8SP95-19	3915	1629	2286
8SP95-20	4019	1629	2390

Parts		Material
Shaft		AISI 304(316L)
Coupling		AISI 304(316L)
Check value		AISI 304(316L)
Pump body		AISI 304(316L)
Impeller		AISI 304(316L)
Diffuser		AISI 304(316L)
Bearing		Wear resistant rubber
Suction strainer		AISI 304(316L)
Suction support		AISI 304(316L)
Delivery body		AISI 304(316L)
