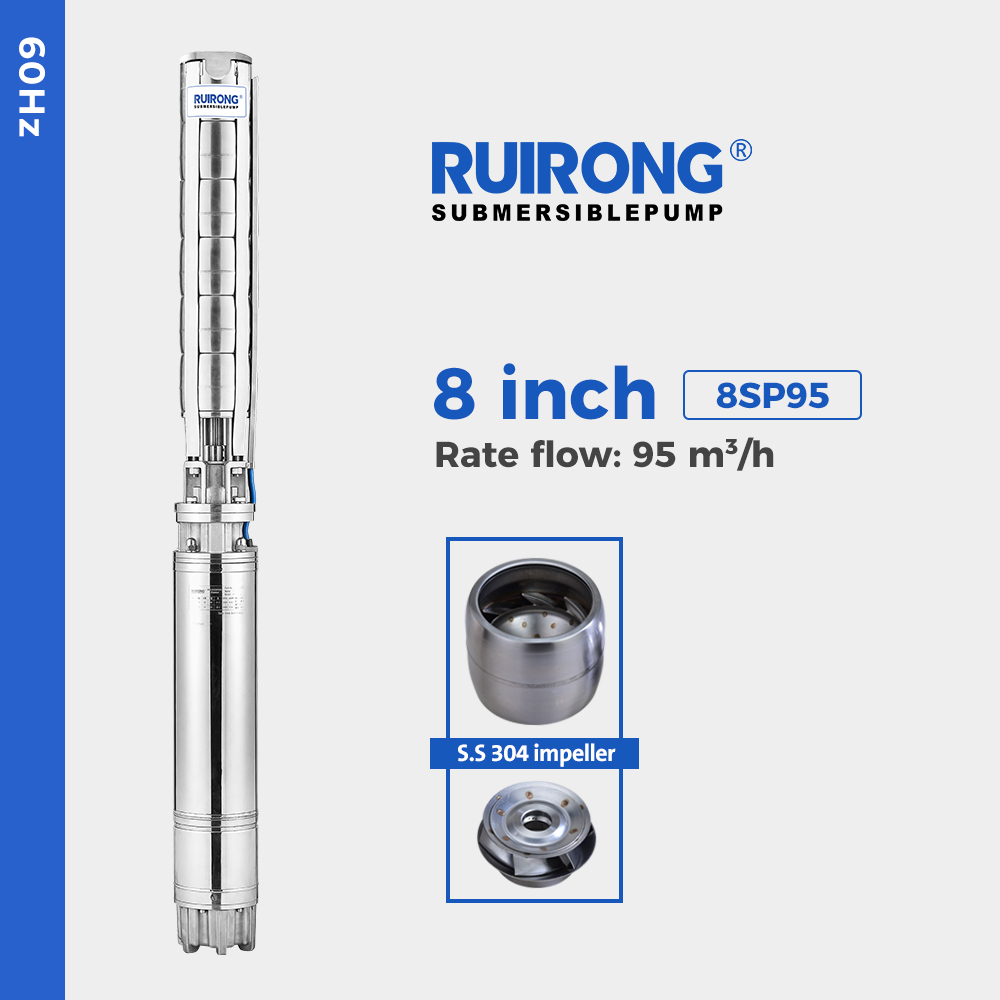

8SP95
RUIRONG
1. Crafted entirely from 100% SS304 stainless steel, these metal materials boast a corrosion-resistant structure that is both clean and eco-friendly, ensuring no secondary pollution affects water quality.
2. Equipped with a check valve, this system effectively prevents backflow water pressure impact when the electric pump halts. Additionally, customizable drain holes can be added to the check valve seat to gradually release water from the pipeline, protecting it from winter freezes.
3. The all-stainless steel impeller is notably more wear-resistant and durable than traditional plastic or brass impellers, enhancing pump efficiency, stability, and longevity.
4. A stainless steel sand net is included to filter out sand and large particles, safeguarding the pump body from potential damage.
5. A specialized thrust bearing is installed to prevent damage during the pump's startup and transportation phases.
Model 60Hz | Motor Power | Three Phase | Q | Capacity | ||||||||
| US.gpm | 0 | 88.1 | 176.1 | 264.2 | 352.2 | 396.3 | 440.3 | 528.3 | ||||
| m3/h | 0 | 20 | 40 | 60 | 80 | 90 | 100 | 120 | ||||
| 380V | L/min | 0 | 333.3 | 666.7 | 1000 | 1333.3 | 1500 | 1666.7 | 2000 | |||
| HP | kW | A | Total head in meters | |||||||||
| *8SP95-01 | 10 | 7.5 | 15.2 | H (m) | 31 | 30 | 28 | 25 | 22 | 21 | 20 | 17 |
| 8SP95-02 | 17.5 | 13 | 29.2 | 62 | 60 | 55 | 49 | 44 | 42 | 40 | 33 | |
| *8SP95-03 | 30 | 22 | 40.8 | 93 | 90 | 82 | 73 | 66 | 63 | 60 | 49 | |
| 8SP95-04 | 35 | 26 | 55.2 | 124 | 120 | 110 | 98 | 88 | 84 | 80 | 66 | |
| *8SP95-05 | 50 | 37 | 80 | 155 | 150 | 137 | 122 | 110 | 105 | 100 | 82 | |
| *8SP95-06 | 60 | 45 | 97 | 186 | 180 | 165 | 147 | 132 | 126 | 120 | 99 | |
| *8SP95-07 | 75 | 55 | 117 | 217 | 210 | 192 | 171 | 154 | 147 | 140 | 115 | |
| 8SP95-08 | 75 | 55 | 134.6 | 248 | 240 | 220 | 196 | 176 | 168 | 160 | 132 | |
| *8SP95-09 | 85 | 63 | 132 | 279 | 270 | 247 | 220 | 198 | 189 | 180 | 148 | |
| *8SP95-10 | 100 | 75 | 155 | 310 | 300 | 275 | 245 | 220 | 210 | 200 | 165 | |
| *8SP95-12 | 125 | 90 | 185 | 372 | 360 | 330 | 294 | 264 | 252 | 240 | 198 | |
| 8SP95-13 | 125 | 90 | 212.8 | 403 | 390 | 357 | 318 | 286 | 273 | 260 | 214 | |
Mark * indicates that the pump body load is configured according to the rated power.
