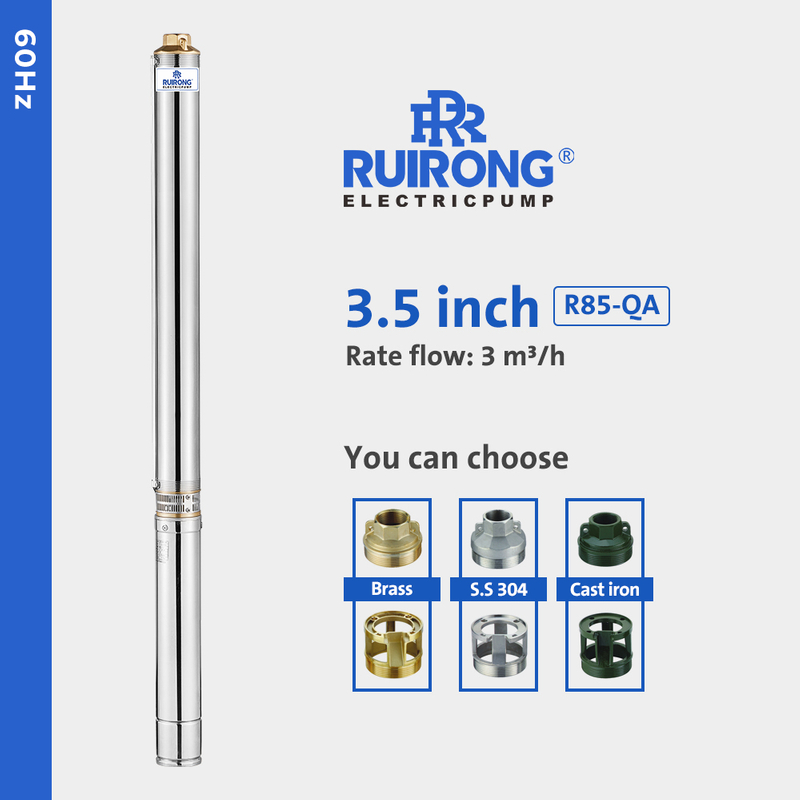

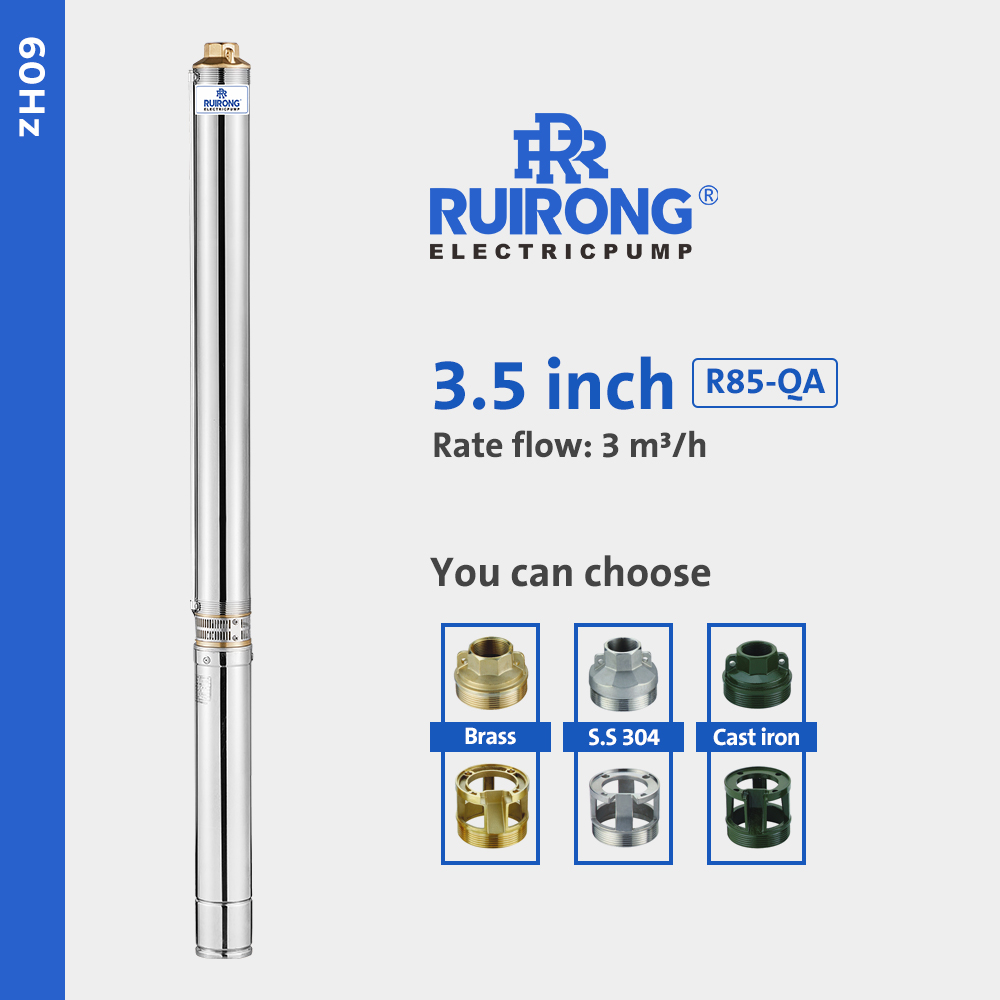

R85-QA
RUIRONG
1. POM Impeller: Enjoy exceptional wear resistance and an extended service life.
2. Multi-Stage Floating Impeller Design: This design significantly reduces the starting torque requirements, ensuring the system is not easily obstructed by small sand particles. With its strong ability to handle sand, it also enhances the motor's lifespan.
Model 60Hz | Motor Power | Three Phase | Single Phase | Q | Capacity | ||||||||||
| US.gpm | 0 | 5.3 | 10.6 | 12.3 | 15.8 | 18.5 | 21.1 | 23.8 | |||||||
| m3/h | 0 | 1.2 | 2.4 | 2.8 | 3.6 | 4.2 | 4.8 | 5.4 | |||||||
| 380V | 220V | L/min | 0 | 20 | 40 | 46.7 | 60 | 70 | 80 | 90 | |||||
| HP | kW | A | A | μF | VC | Total head in meters | |||||||||
| R85-QA-04 | 0.5 | 0.37 | 1.2 | 3.4 | 12 | 450 | H (m) | 36 | 33 | 31 | 29 | 25 | 21 | 16 | 10 |
| R85-QA-06 | 0.5 | 0.37 | 1.2 | 3.4 | 12 | 450 | 55 | 50 | 46 | 44 | 38 | 32 | 24 | 15 | |
| R85-QA-08 | 0.75 | 0.55 | 1.7 | 4.2 | 15 | 450 | 73 | 67 | 62 | 58 | 51 | 42 | 32 | 21 | |
| R85-QA-10 | 1 | 0.75 | 2.1 | 5.4 | 20 | 450 | 91 | 84 | 77 | 73 | 64 | 53 | 41 | 26 | |
| R85-QA-12 | 1.5 | 1.1 | 2.8 | 7.2 | 25 | 450 | 109 | 101 | 92 | 88 | 77 | 64 | 48 | 31 | |
| R85-QA-14 | 1.5 | 1.1 | 2.8 | 7.2 | 25 | 450 | 127 | 117 | 107 | 102 | 89 | 74 | 56 | 36 | |
| R85-QA-16 | 2 | 1.5 | 3.7 | 9.6 | 30 | 450 | 145 | 134 | 123 | 117 | 102 | 85 | 65 | 41 | |
| R85-QA-18 | 2 | 1.5 | 3.7 | 9.6 | 30 | 450 | 163 | 151 | 138 | 133 | 106 | 95 | 73 | 47 | |
| R85-QA-22 | 3 | 2.2 | 5.4 | 13.6 | 40 | 450 | 200 | 185 | 169 | 160 | 141 | 117 | 89 | 57 | |
| R85-QA-25 | 3 | 2.2 | 5.4 | 13.6 | 40 | 450 | 227 | 210 | 192 | 182 | 160 | 132 | 101 | 65 | |
 | (Unit of Length: mm) | ||||||
| Model | H3 | H2 | H1 | ΦA | ΦB | Φmax | |
| R85-QA-04 | 664 | 307 | 357 | G1 1/4" | 85 | 89 | |
| R85-QA-06 | 723 | 307 | 416 | ||||
| R85-QA-08 | 792 | 317 | 474 | ||||
| R85-QA-10 | 870 | 337 | 533 | ||||
| R85-QA-12 | 954 | 362 | 591 | ||||
| R85-QA-14 | 1012 | 362 | 650 | ||||
| R85-QA-16 | 1100 | 392 | 708 | ||||
| R85-QA-18 | 1159 | 392 | 708 | ||||
| R85-QA-22 | 1372 | 442 | 929 | ||||
| R85-QA-25 | 1460 | 442 | 1018 | ||||
| Parts | Material | ||||||
| Delivery door | Cast iron | ||||||
| Suction support | Cast iron | ||||||
| Check value | Plastic(POM) | ||||||
| Valve support | Plastic(PPO/PC) | ||||||
| Shaft support | Plastic(PPO/PC) | ||||||
| Impeller | Plastic(PPO) | ||||||
| Diffuser | Plastic(POM) | ||||||
| Valve seal | Nitrile rubber(NBR) | ||||||
| Anti-wear washer | Nitrile rubber(NBR) | ||||||
| Pump bearing | Nitrile rubber(NBR) | ||||||
| Pump body | AISI 304 | ||||||
| Cable cover | AISI 304 | ||||||
| Filter | AISI 304 | ||||||
| Shaft | 2Cr13 | ||||||
| Shaft coupling | AISI 304 | ||||||
| Bushing | AISI 304 | ||||||
