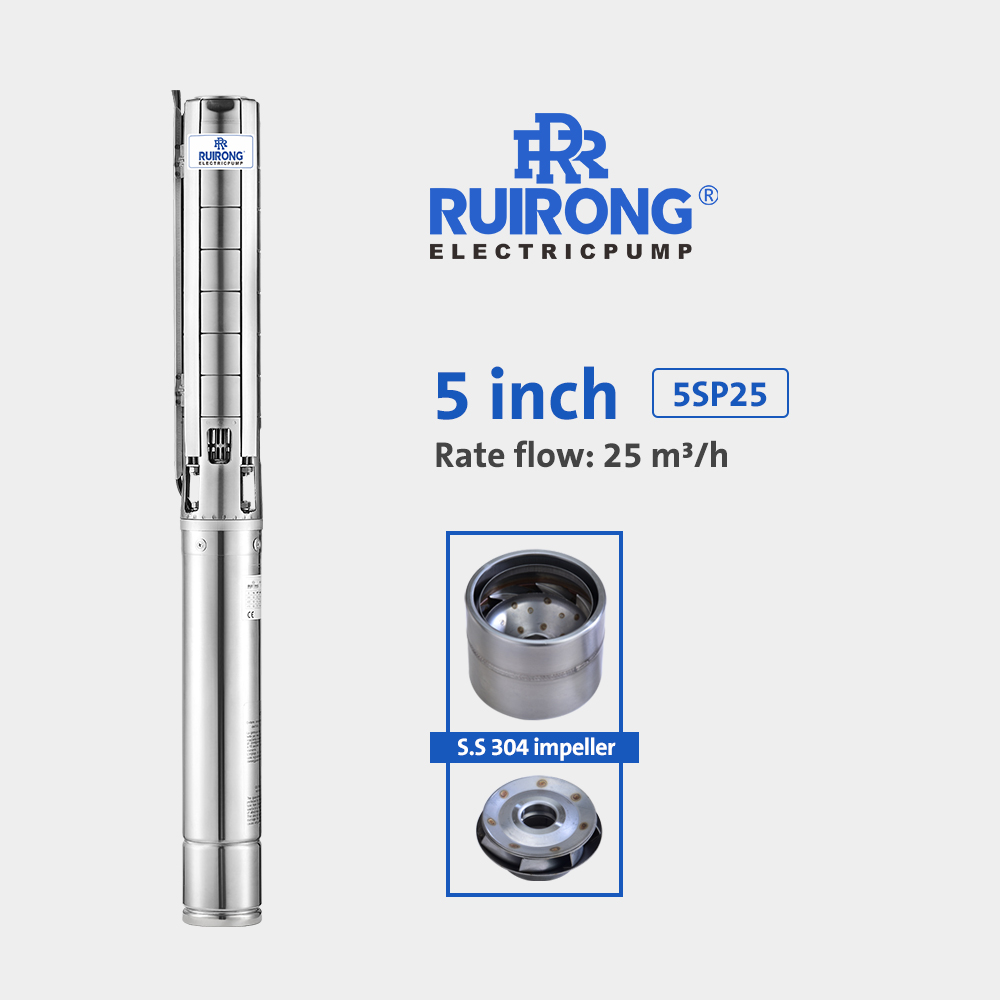

5SP25
RUIRONG
1. All components are crafted from 100% SS304 stainless steel, ensuring the structure is corrosion-resistant, environmentally friendly, and free from contamination, thus preserving water quality.
2. A built-in check valve prevents backflow pressure impact when the electric pump stops. For added convenience, the check valve seat can be customized with drain holes to release water slowly, thus preventing pipe freezing during winter months.
3. The stainless steel impeller offers superior wear resistance and a significantly longer lifespan compared to plastic and brass options, enhancing the pump’s efficiency, stability, and durability.
4. A stainless steel sand net is included to block sand and large particulates from entering the pump body, safeguarding its performance.
5. A specially designed thrust bearing is installed to protect the pump from damage during startup and transportation, ensuring reliable operation.
Model 50Hz | Motor Power | Three Phase | Q | Capacity | ||||||||
| US.gpm | 0 | 66 | 88 | 97 | 110 | 123 | 132 | 154 | ||||
| m3/h | 0 | 15 | 20 | 22 | 25 | 28 | 30 | 35 | ||||
| 380V | L/min | 0 | 250 | 333 | 367 | 416 | 467 | 500 | 583 | |||
| HP | kW | A | Total head in meters | |||||||||
| 5SP25-03 | 3 | 2.2 | 5.5 | H (m) | 33 | 28 | 26 | 25 | 22 | 18 | 16 | 11 |
| 5SP25-04 | 4 | 3 | 7.5 | 44 | 37 | 35 | 33 | 30 | 25 | 22 | 14 | |
| 5SP25-05 | 5.5 | 4 | 9.5 | 55 | 47 | 44 | 42 | 37 | 31 | 27 | 18 | |
| 5SP25-07 | 7.5 | 5.5 | 12.8 | 77 | 65 | 62 | 58 | 52 | 44 | 38 | 25 | |
| 5SP25-10 | 10 | 7.5 | 17.2 | 110 | 93 | 88 | 84 | 75 | 63 | 54 | 36 | |
| 5SP25-12 | 12.5 | 9.2 | 20.7 | 132 | 112 | 106 | 100 | 90 | 75 | 65 | 43 | |
| 5SP25-14 | 15 | 11 | 24.6 | 154 | 130 | 123 | 117 | 105 | 88 | 76 | 50 | |
| 5SP25-17 | 17.5 | 13 | 29 | 187 | 158 | 150 | 143 | 127 | 107 | 92 | 61 | |
| 5SP25-20 | 20 | 15 | 33.6 | 220 | 186 | 176 | 168 | 150 | 125 | 108 | 72 | |
 | (Unit of Length: mm) | ||||||
| Model | H3 | H2 | H1 | ΦA | ΦB | Φmax | |
| 5SP25-03 | 925 | 529 | 396 | G2 1/2" | 114 | 125 | |
| 5SP25-04 | 1011 | 559 | 452 | ||||
| 5SP25-05 | 1107 | 599 | 508 | ||||
| 5SP25-07 | 1269 | 649 | 620 | ||||
| 5SP25-10 | 1497 | 709 | 788 | ||||
| 5SP25-12 | 1685 | 779 | 906 | ||||
| 5SP25-14 | 1841 | 829 | 1012 | ||||
| 5SP25-17 | 2059 | 879 | 1180 | ||||
| 5SP25-20 | 2277 | 929 | 1348 | ||||
| Parts | Material | ||||||
| Shaft | AISI 304(316L) | ||||||
| Coupling | AISI 304(316L) | ||||||
| Check value | AISI 304(316L) | ||||||
| Pump body | AISI 304(316L) | ||||||
| Impeller | AISI 304(316L) | ||||||
| Diffuser | AISI 304(316L) | ||||||
| Bearing | Wear resistant rubber | ||||||
| Suction strainer | AISI 304(316L) | ||||||
| Suction support | AISI 304(316L) | ||||||
| Delivery body | AISI 304(316L) | ||||||
