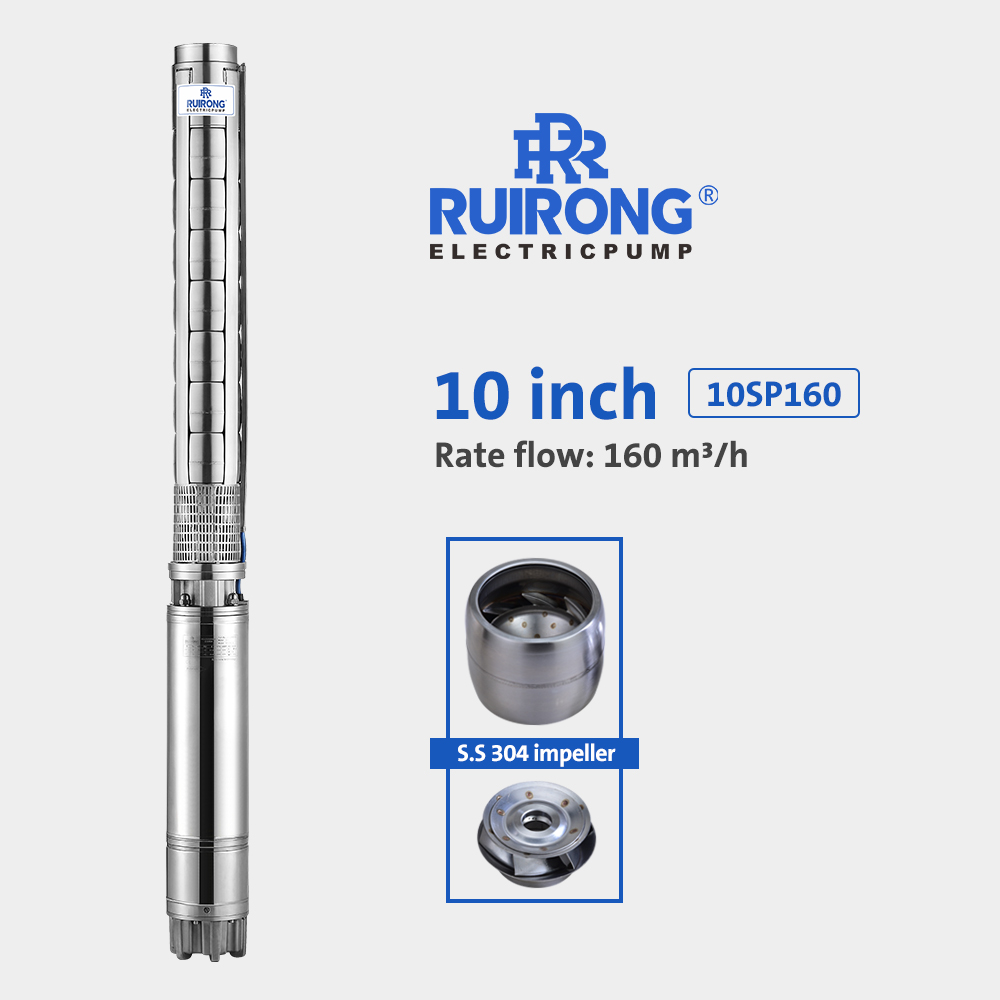

10SP160
RUIRONG
1. All components are constructed from 100% SS304 stainless steel, offering superior corrosion resistance and an environmentally friendly design that safeguards water quality without causing secondary pollution.
2. Each unit includes a check valve designed to prevent backflow pressure impacts when the electric pump stops. For added protection, optional drain holes can be included on the check valve seat, allowing for gradual water drainage from the pipeline to prevent freezing during winter months.
3. The all-stainless-steel impeller significantly outperforms ordinary plastic and brass impellers, providing exceptional wear resistance and a longer service life, resulting in a high-efficiency pump with excellent stability and durability.
4. A stainless steel sand net is incorporated to prevent sand and large particulate matter from entering the pump body.
5. A special thrust bearing is installed to effectively protect the pump during startup and transportation, reducing the risk of damage.
Model 50Hz | Motor Power | Three Phase | Q | Capacity | ||||||||
| US.gpm | 0 | 440 | 528 | 616 | 660 | 704 | 792 | 880 | ||||
| m3/h | 0 | 100 | 120 | 140 | 150 | 160 | 180 | 200 | ||||
| 380V | L/min | 0 | 1667 | 2000 | 2333 | 2500 | 2667 | 3000 | 3333 | |||
| HP | kW | A | Total head in meters | |||||||||
| 10SP160-01 | 17.5 | 13 | 30 | H (m) | 33 | 25 | 23 | 22 | 21 | 20 | 18 | 16 |
| 10SP160-02 | 35 | 26 | 55 | 65 | 50 | 46 | 44 | 42 | 40 | 36 | 31 | |
| 10SP160-03 | 50 | 37 | 60 | 99 | 75 | 69 | 66 | 64 | 60 | 52 | 47 | |
| 10SP160-04 | 75 | 55 | 117 | 132 | 100 | 92 | 88 | 84 | 80 | 72 | 65 | |
| 10SP160-05 | 85 | 63 | 132 | 160 | 135 | 115 | 110 | 105 | 100 | 90 | 80 | |
| 10SP160-06 | 100 | 75 | 155 | 198 | 150 | 138 | 130 | 125 | 120 | 108 | 98 | |
| 10SP160-07 | 125 | 93 | 176 | 231 | 175 | 161 | 152 | 146 | 140 | 136 | 113 | |
| 10SP160-08 | 125 | 93 | 176 | 264 | 200 | 183 | 174 | 168 | 160 | 144 | 130 | |
| 10SP160-09 | 150 | 110 | 210 | 297 | 225 | 205 | 195 | 188 | 180 | 162 | 145 | |
 | (Unit of Length: mm) | |||
| Model | H1 | ΦA | Φmax | |
| 10SP160-01 | 616 | G6" | 210 | |
| 10SP160-02 | 772 | |||
| 10SP160-03 | 928 | |||
| 10SP160-04 | 1084 | |||
| 10SP160-05 | 1240 | |||
| 10SP160-06 | 1396 | |||
| 10SP160-07 | 1552 | |||
| 10SP160-08 | 1708 | |||
| 10SP160-09 | 1864 | |||
| Parts | Material | |||
| Shaft | AISI 304(316L) | |||
| Coupling | AISI 304(316L) | |||
| Check value | AISI 304(316L) | |||
| Pump body | AISI 304(316L) | |||
| Impeller | AISI 304(316L) | |||
| Diffuser | AISI 304(316L) | |||
| Bearing | Wear resistant rubber | |||
| Suction strainer | AISI 304(316L) | |||
| Suction support | AISI 304(316L) | |||
| Delivery body | AISI 304(316L) | |||
