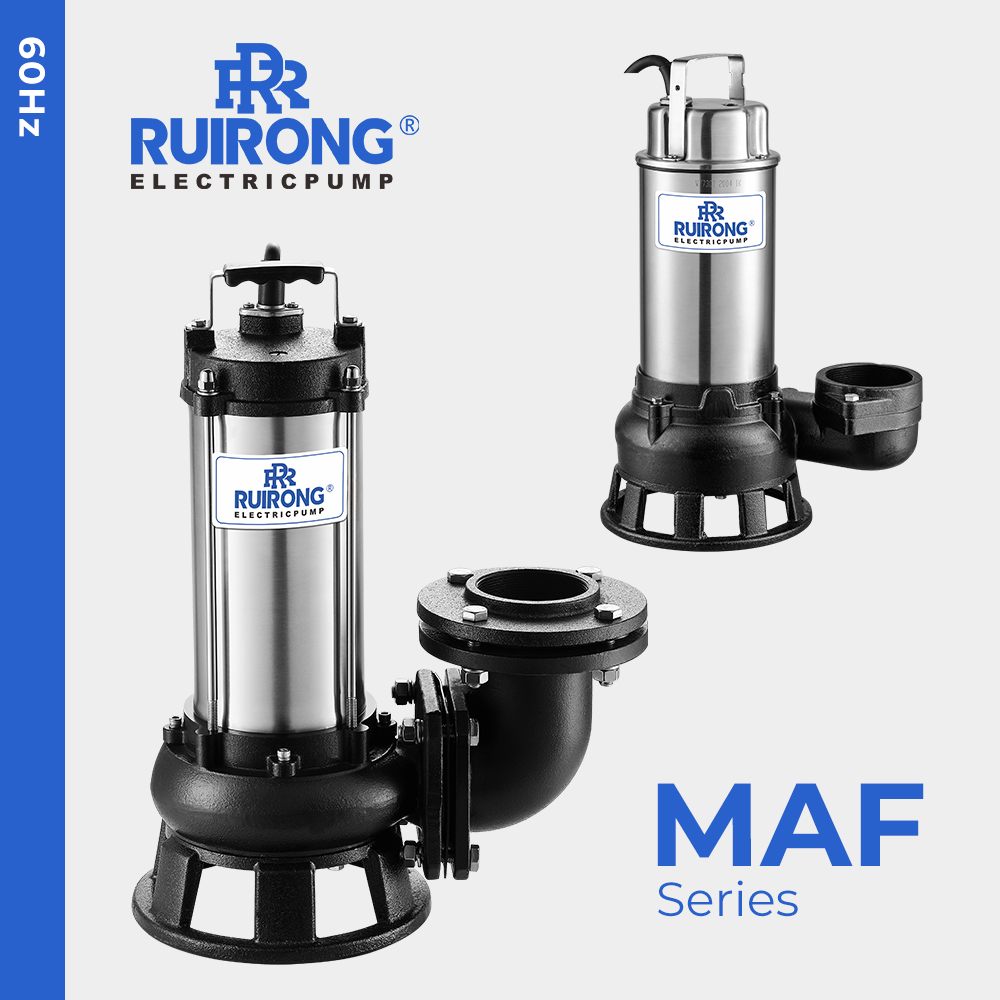

MAF
RUIRONG
1. The Italian double mechanical seal technology guarantees that the pump can operate continuously for over 8,000 hours.
2. The cable features an anti-fog design, offering exceptional waterproof performance.
3. Thanks to the innovative impeller and volute design, large solid particles can easily pass through (refer to the table for specific particle sizes).
4. A fully automated control cabinet can be customized based on user requirements, offering automatic protection against electrical leakage and overload. This significantly enhances the pump's safety and reliability.
1. Ideal for basement construction, agricultural fields, factory waste management, and industrial wastewater drainage.
2. Perfect for handling dirty and wastewater drainage in sewage treatment plants.
Model 60Hz | Power | Voltage | Rotation | Max Flow | Max Head | Outlet | Max Particle | Weight | |
| kW | HP | V | P/rpm | m³/h | m | mm | mm | kg | |
| MAF0.37 | 0.37 | 0.5 | 230 | 2P/3450 | 14 | 11 | 40/50 | 6.8 | 14.6 |
| MAF0.55 | 0.55 | 0.75 | 230/380 | 2P/3450 | 14 | 14 | 40/50 | 6.8 | 14.6 |
| MAF0.75 | 0.75 | 1 | 230/380 | 2P/3450 | 36 | 13 | 40/50 | 5.5/7 | 20.7 |
| MAF1.1 | 1.1 | 1.5 | 230/380 | 2P/3450 | 44 | 17 | 40/50 | 5.5/7 | 22.3 |
| MAF1.5 | 1.5 | 2 | 230/380 | 2P/3450 | 56 | 18 | 80 | 8 | 24 |
| MAF2.2 | 2.2 | 3 | 230/380 | 2P/3450 | 62 | 21 | 80 | 8 | 42.5 |
| MAF3.7 | 3.7 | 5 | 380 | 2P/3450 | 108 | 22 | 100 | 20 | 91.3 |
| MAF5.5 | 5.5 | 7.5 | 380 | 2P/3450 | 120 | 28 | 100 | 22 | 94.3 |
| MAF7.5 | 7.5 | 10 | 380 | 2P/3450 | 140 | 31.4 | 100 | 22 | 98.1 |
1. The Italian double mechanical seal technology guarantees that the pump can operate continuously for over 8,000 hours.
2. The cable features an anti-fog design, offering exceptional waterproof performance.
3. Thanks to the innovative impeller and volute design, large solid particles can easily pass through (refer to the table for specific particle sizes).
4. A fully automated control cabinet can be customized based on user requirements, offering automatic protection against electrical leakage and overload. This significantly enhances the pump's safety and reliability.
1. Ideal for basement construction, agricultural fields, factory waste management, and industrial wastewater drainage.
2. Perfect for handling dirty and wastewater drainage in sewage treatment plants.
Model 60Hz | Power | Voltage | Rotation | Max Flow | Max Head | Outlet | Max Particle | Weight | |
| kW | HP | V | P/rpm | m³/h | m | mm | mm | kg | |
| MAF0.37 | 0.37 | 0.5 | 230 | 2P/3450 | 14 | 11 | 40/50 | 6.8 | 14.6 |
| MAF0.55 | 0.55 | 0.75 | 230/380 | 2P/3450 | 14 | 14 | 40/50 | 6.8 | 14.6 |
| MAF0.75 | 0.75 | 1 | 230/380 | 2P/3450 | 36 | 13 | 40/50 | 5.5/7 | 20.7 |
| MAF1.1 | 1.1 | 1.5 | 230/380 | 2P/3450 | 44 | 17 | 40/50 | 5.5/7 | 22.3 |
| MAF1.5 | 1.5 | 2 | 230/380 | 2P/3450 | 56 | 18 | 80 | 8 | 24 |
| MAF2.2 | 2.2 | 3 | 230/380 | 2P/3450 | 62 | 21 | 80 | 8 | 42.5 |
| MAF3.7 | 3.7 | 5 | 380 | 2P/3450 | 108 | 22 | 100 | 20 | 91.3 |
| MAF5.5 | 5.5 | 7.5 | 380 | 2P/3450 | 120 | 28 | 100 | 22 | 94.3 |
| MAF7.5 | 7.5 | 10 | 380 | 2P/3450 | 140 | 31.4 | 100 | 22 | 98.1 |
