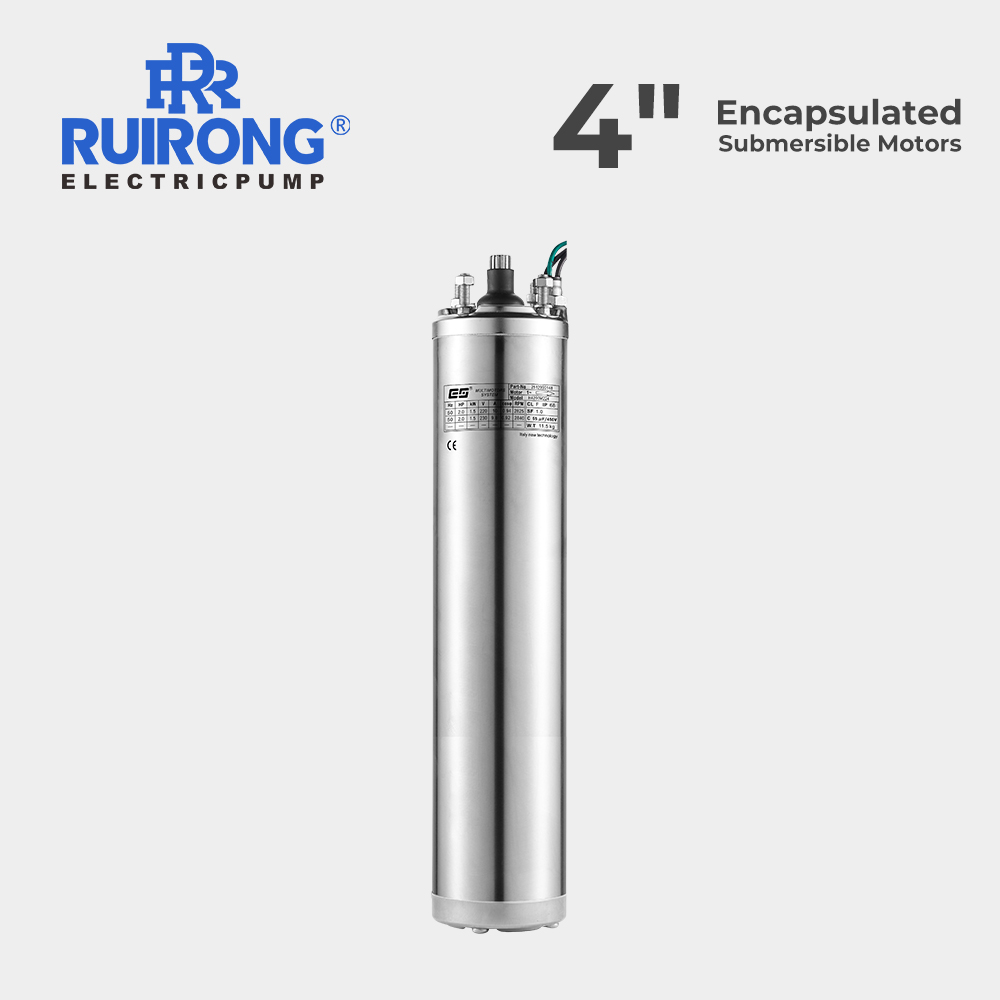

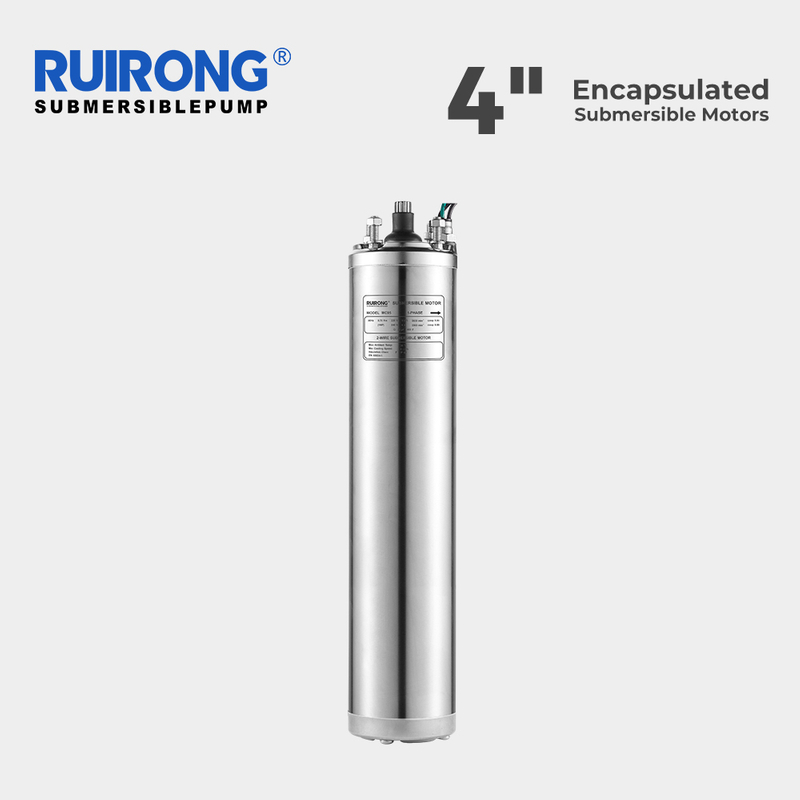

MC95
1. High-Quality and Accurate Mechanical Seals
2. Durable Stainless Steel 304 Motor Housing and Bottom Cover
3. Energy-Efficient Cold-Rolled Silicon Steel Sheets for Laminations—Offers Low Loss and Excellent Magnetic Conductivity
4. Silent, High-Precision Bearings Ensure Long Service Life and Stable Pump Operation
5. H-Class (200 Degrees) High-Temperature Resistant Pure Copper Wire Stator—Features Low Temperature Rise, Ensures Safety and Reliability, Ideal for Continuous Long-Term Use, Eco-Friendly and Energy-Saving
6. Versatile 4-Inch Single-Phase Motor Supports Wide Voltage Range from 160V to 220V
7. Convenient Plug-Type Cable Design for Easy Cable Replacement
| Single-phase 220/230V 50Hz | ||||||||
| Model | kW | HP | Current(A) | μF | CosΦ | rpm | L(mm) | W(Kg) |
| Built-in Capacitor | ||||||||
| MC95-0.37 | 0.37 | 0.5 | - | - | - | - | 337 | - |
| MC95-0.55 | 0.55 | 0.75 | 4.2 | 25 | 0.97 | 2850 | 362 | - |
| MC95-0.75 | 0.75 | 1 | 5.6 | 30 | 0.95 | 2850 | 382 | - |
| MC95-1.1 | 1.1 | 1.5 | 7.9 | 40 | 0.99 | 2850 | 432 | - |
| External Capacitor | ||||||||
| MC95-0.37 | 0.37 | 0.5 | - | - | - | - | 301 | - |
| MC95-0.55 | 0.55 | 0.75 | 4.2 | 25 | 0.97 | 2850 | 326 | - |
| MC95-0.75 | 0.75 | 1 | 5.6 | 30 | 0.95 | 2830 | 346 | - |
| MC95-1.1 | 1.1 | 1.5 | 7.9 | 40 | 0.99 | 2830 | 396 | - |
| MC95-1.5 | 1.5 | 2 | 10.3 | 50 | 0.98 | 2830 | 431 | - |
| MC95-2.2 | 2.2 | 3 | 15 | 70 | 0.98 | 2830 | 511 | - |
| Three-phase 380/415V 50Hz | |||||||
| Model | kW | HP | Current(A) | CosΦ | rpm | L(mm) | W(Kg) |
| MC95-0.37 | 0.37 | 0.5 | 1.2 | 0.76 | 2850 | 301 | - |
| MC95-0.55 | 0.55 | 0.75 | 1.7 | 0.76 | 2850 | 316 | - |
| MC95-0.75 | 0.75 | 1 | 2.2 | 0.75 | 2850 | 346 | - |
| MC95-1.1 | 1.1 | 1.5 | 3.2 | 0.75 | 2850 | 366 | - |
| MC95-1.5 | 1.5 | 2 | 4.2 | 0.76 | 2850 | 396 | - |
| MC95-2.2 | 2.2 | 3 | 6 | 0.77 | 2850 | 467 | - |
| MC95-3.0 | 3 | 4 | 8 | 0.78 | 2850 | 512 | - |
| MC95-4.0 | 4 | 5.5 | 10.2 | 0.81 | 2850 | 591 | - |
| MC95-5.5 | 5.5 | 7.5 | 14.2 | 0.79 | 2850 | 691 | - |
